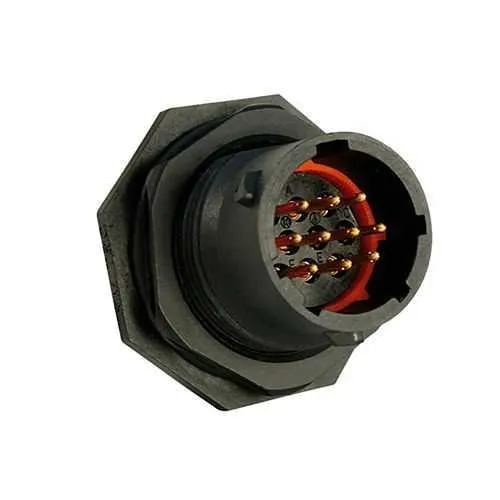

Eaton UTS71210PY UTS Series Plastic Connector - IP68/69K
Part Number: UTS71210PY
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector is a rugged 10-position interface designed for harsh industrial environments. Operators and maintenance teams often struggle with moisture ingress, field rework, and harness incompatibilities when wiring multi-pin connectors in outdoor or wet locations. This design delivers IP68/IP69K protection and compliance with UL 1977, IEC 61984, and CSA standards, ensuring safe operation in equipment exposed to vibration, oils, and temperature swings. With jam-nut receptacle construction and a 1/3 bayonet coupling, it enables quick, seal-tight installations and predictable lifecycle performance—reducing downtime and total cost of ownership.
Product Information
Extended Description
UTS71210PY Eaton: Plastic jam nut receptacle, without backshell, for 10 male contacts, IP68/69K, keying Y; UTS71210PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210PY
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Sealed IP68/69K protection and UV-stable materials reduce water ingress and outdoor damage. Business impact: fewer field failures, longer service intervals, and lower warranty costs. Application: outdoor equipment, heavy machinery, and marine or off-road robotics. Electrical performance is rated at 5 A UL and 6 A IEC with a 250 V rating, guaranteeing safe operation in compact control panels and conveyor systems, while supporting regulatory compliance and design margin. Mechanical design features include a 1/3 bayonet coupling and a jam-nut receptacle for fast, secure field connections with easy mating alignment in tight spaces. This translates to reduced installation time and improved reliability on rugged lines and automation cabinets. Material choices—polyamide insert and plastic shell—deliver chemical resistance and long-term durability, supporting sustained performance in oils, solvents, and UV exposure. With 250 mating cycles and a -40 to 105 °C operating window, the connector suits demanding industrial cycles and extreme environments, lowering lifecycle costs and maintenance frequency. Compatibility with crimp contacts, 10 cavities, and optional accessories ensures seamless integration into existing harnesses and OEM equipment, while the compact footprint and standard SFP-like layout support scalable industrial automation deployments.
Get a Quick Quote for a Eaton UTS71210PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210PY?
Enquire Now
FAQs
The UTS71210PY uses a jam-nut receptacle design with a 1/3 bayonet coupling, not including a backshell by default. For streamlined integration, verify mating alignment with the Y-keying and plan for crimp contact terminations. Ensure the connector is mounted with the jam nut tightened to spec to maintain IP68/69K sealing and inspect the seal gaskets during assembly for long-term reliability.
This connector delivers IP68/IP69K protection, UV resistance, and chemical resilience, including mineral oil and various baths. Combined with a robust polyamide insert and plastic shell, it withstands high vibration (IEC 60512-4 range), salt spray up to 500 hours, and operating temperatures from -40 °C to 105 °C, making it ideal for outdoor equipment, heavy machinery, and marine applications.
Yes. The UTS71210PY is designed to meet UL 1977 and IEC 61984 requirements, with additional CSA and RoHS/Reach considerations. When selecting harnesses and mating components, ensure crimp contact terminations and mating cycles (up to 250) align with your regulatory scope to maintain compliance across environments such as automation cabinets and industrial conveyors.
The connector provides a current rating of 5 A (UL) and 6 A (IEC), with test currents up to 6 A IEC and test voltages of 250 V UL and CSA. It supports 10 contacts and a 250 V rating per UL, enabling safe operation in control circuits and sensor/actuator networks within automated systems, while maintaining margin for transient surges and control logic reliability.
The UTS71210PY offers about 250 mating cycles, a salt spray rating of 500 hours, and a broad operating range. The design emphasizes replaceable crimp contacts and a standard jam-nut receptacle; however, backshells are not delivered and must be ordered separately. Plan for periodic inspection of seals and gaskets to sustain IP68/69K performance in demanding environments.
