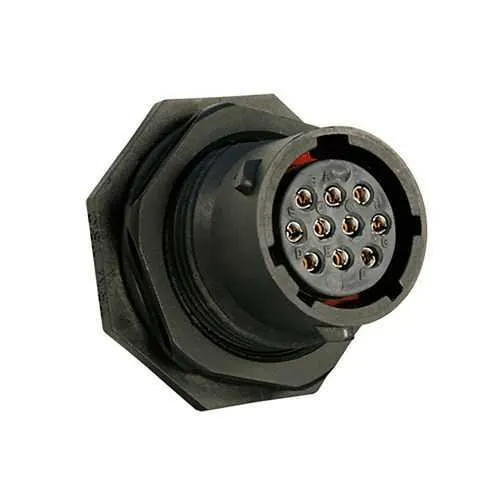

Eaton UTS71210S Receptacle - IP68/69K
Part Number: UTS71210S
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector is built to deliver reliable power and signal connectivity in harsh environments. Operators in manufacturing and field service grapple with water ingress, dust, and temperature swings that drive downtime and repair costs. This design meets IP68/IP69K protection, UL 1977 recognition, and IEC 61984 compatibility, supporting safe operation across rugged applications. With jam-nut receptacle integration and 10 crimp contacts, it enables compact cabling and fast, secure installation while delivering long-term reliability for automated equipment. Ideal for conveyors, agricultural machinery, and outdoor control panels, it reduces wiring errors and repair cycles in critical production lines.
Product Information
Extended Description
UTS71210S Eaton: Plastic jam nut receptacle, without backshell, for 10 female contacts, IP68/69K; UTS71210S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210S
Product Length/Depth
33.9 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Flammability rating UL94 V0 Fire & Smoke REACH
Environmental resistance
Resistant against basic bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
5 A UL 6 A IEC 4 A CSA
Test voltage
250 V CSA 50 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K sealing and rugged plastic housing provide superior ingress protection and long-term environmental resistance, reducing unplanned downtime in washdown and outdoor settings. This translates to higher line availability and lower maintenance costs in demanding applications such as packaging and process automation. Ten-position crimp contacts in a jam-nut receptacle simplify cabling, save space, and speed field assembly, enabling faster machine upgrades and easier retrofits. The 1/3 bayonet coupling delivers reliable mating even under vibration, improving connection integrity in conveyors and robotic cells. Operating from -40 °C to 105 °C with a 6 A IEC / 5 A UL current rating and 250 V, it supports heavy industrial duty without compromising safety. Lightweight polyamide insert, aluminum nut, and plastic shell keep total installed mass low while maintaining mechanical strength for outdoor enclosures and IP-rated panels. Compatible with standard Eaton Souriau UTS accessories, the design reduces** total lifecycle costs by extending service intervals, enabling predictive maintenance, and simplifying spare-part inventories. With 250 mating cycles and a 500-hour salt-spray rating, this connector is well-suited for harsh environments and high-reliability automation systems, providing confidence for OEMs and end users alike.
Get a Quick Quote for a Eaton UTS71210S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210S?
Enquire Now
FAQs
The UTS71210S uses 10 crimp contacts and a 1/3 bayonet coupling mechanism designed specifically for the jam-nut receptacle variant. It fits standard Souriau UTS accessories and is intended for compact, secure wiring in IP-rated panels. For best results, follow the recommended torque and mating sequence to maintain IP68/69K integrity during installation.
The connector supports a current rating of 6 A (IEC) or 5 A (UL) and a test voltage of 250 V (CSA/UL) with 250 V across the IEC rating. This makes it suitable for low-to-medium power signals and control circuits within rugged automation and machinery deployments, while preserving safe insulation and sealing performance.
Yes. The UTS71210S is rated IP68 and designed for harsh environments, including outdoor and washdown areas. Its polyamide insert and plastic shell, combined with a jam-nut receptacle and robust sealing, resist UV exposure, salt spray, and basic chemical exposure, ensuring reliable operation under weather and cleaning cycles.
This receptacle aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with RoHS compliance and UL94 V0 flame rating. These certifications support safe, regulatory-compliant operation in many industrial applications, from machinery to process automation and control panels.
The jam-nut receptacle design enables compact, secure mounting without backshells, reducing panel depth and installation time. Its light weight (12.7 g) and 12-shell size simplify routing in tight spaces, while high mating cycles (up to 250) support longer maintenance intervals. This translates to lower field labor costs and improved equipment uptime.
