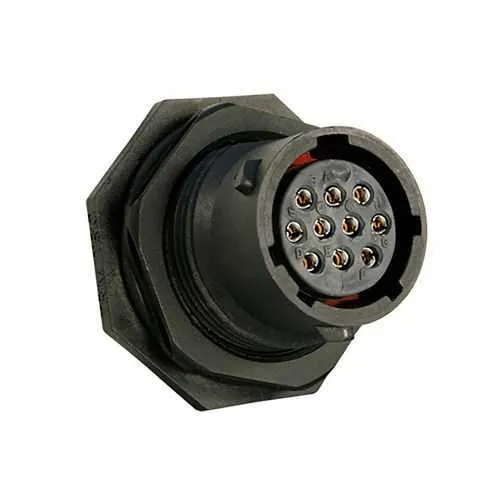

Eaton UTS71210SW IP68/69K Jam Nut Receptacle - 10 Contacts
Part Number: UTS71210SW
Quick Summary
The Eaton Souriau UTS71210SW is a plastic waterproof IP68/69K connector for harsh-environment machinery. In tight enclosures and outdoor plants, engineers frequently battle water ingress, vibration, and time-consuming maintenance. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, aligning with global safety requirements and interchangeability. With a 10-contact jam-nut receptacle, 1/3 bayonet coupling, and durable insert materials, this solution improves uptime and simplifies installation, especially for automation and field service scenarios. Designed for quick assembly, it reduces installation time on production lines and in service vans. For compliance-driven projects, it offers traceability and predictable performance under -40 to 105 C.
Product Information
Extended Description
UTS71210SW Eaton: Plastic jam nut receptacle, without backshell, for 10 female contacts, IP68/69K, keying W; UTS71210SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210SW
Product Length/Depth
33.9 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/IP69K sealing and rugged environmental resistance protect equipment from dust, water spray, and harsh chemicals, reducing unplanned downtime and extending service intervals in outdoor machinery and marine environments. This translates to lower maintenance costs and higher line availability in food & beverage, packaging, and outdoor automation applications. Feature → Business Impact → Application: 10-contact crimp configuration with 1/3 bayonet coupling enables fast, secure mating and reliable signal transmission across multiple channels, improving installation speed on high-mix assembly lines and field service calls where space is constrained. Feature → Business Impact → Application: Operating temperature range of -40 to 105 C and UV-resistant materials ensure reliable performance in extreme environments, supporting uptime in outdoor conveyors, wind turbines, and agricultural machinery. Feature → Business Impact → Application: Aluminium nut and polyamide insert deliver durable mounting and chemical resistance, reducing wear and replacement costs in industrial robotics and polling sensors. Feature → Business Impact → Application: 250 mating cycles and salt spray resistance of 500 hours provide long lifecycle performance for equipment operating in rugged automotive, marine, and heavy equipment test benches, lowering total cost of ownership. Feature → Business Impact → Application: Compliance with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 simplifies procurement and system integration across global facilities, reducing certification overhead and accelerating deployment in multinational plants.
Get a Quick Quote for a Eaton UTS71210SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210SW?
Enquire Now
FAQs
The UTS71210SW is a jam-nut receptacle with W orientation, designed for panel-mounted installations without a backshell by default. It uses a 1/3 bayonet coupling for quick, secure mating. When planning a panel, consider the aluminium nut and slot alignment to ensure proper sealing and polarization with the mating connector.
This connector supports a current rating of 5 A UL and 6 A IEC, with a test current of 6 A IEC and 5 A UL. It is rated for 50 V IEC and up to 250 V UL/CSA, making it suitable for low- to mid-power signaling and control circuits in rugged environments.
The UTS71210SW offers IP68 protection, UV resistance, and salt spray endurance for up to 500 hours. It also withstands vibrations per IEC 60512-4 (10–2000 Hz) and resists chemical exposure to acids, bases, gasoline, mineral oil, and other harsh substances, ensuring reliability in demanding industrial settings.
Ideal for industrial automation, outdoor machinery, robotics, packaging lines, and marine equipment, the 10-contact jam-nut receptacle enables compact, rugged connections with easy maintenance. Its IP68/69K rating and 1/3 bayonet coupling support quick field servicing and robust performance in harsh environments.
Prepare for panel mounting without a backshell, using the aluminium nut and jam-nut receptacle design. Ensure proper keying (W) to align with the mate and verify mating cycles (up to 250) for lifecycle planning. Order any required backshells or accessories separately to meet specific enclosure and protection needs.
