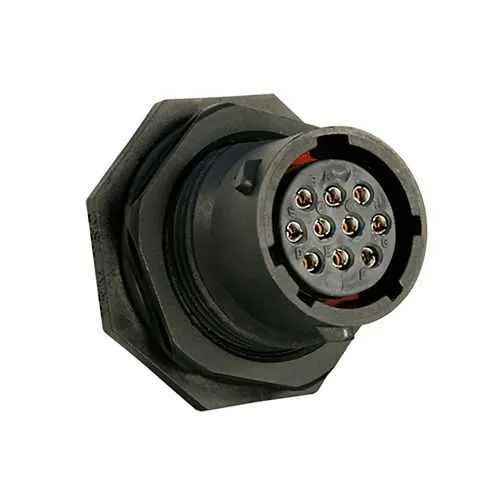

Eaton UTS71210SY Plastic Waterproof Connector - IP68/69K
Part Number: UTS71210SY
Quick Summary
The Eaton UTS71210SY plastic waterproof IP68/69K connector enables rugged, 10‑circuit data and power connections for harsh industrial environments. Moisture ingress, vibration, and demanding field maintenance can erode uptime and inflate lifecycle costs. It carries IEC 61984, UL 1977, and CSA‑C22.2 No.182.3 certifications, reinforcing regulatory compliance across global deployments. Optimized for space‑constrained harnesses, the jam‑nut receptacle with 1/3 bayonet coupling simplifies installation, reduces assembly time, and improves reliability. For procurement and maintenance teams, this translates to lower service costs, consistent performance, and easier interchangeability across Souriau UTS series deployments.
Product Information
Extended Description
UTS71210SY Eaton: Plastic jam nut receptacle, without backshell, for 10 female contacts, IP68/69K, keying Y; UTS71210SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210SY
Product Length/Depth
33.9 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A UL 6 A IEC
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil
Test current
5 A UL 6 A IEC 4 A CSA
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: The 10‑contact jam‑nut receptacle provides a compact, high‑density connection point that minimizes harness size while preserving signal integrity, reducing wiring complexity and enabling faster panel assembly in automotive and industrial automation. This design delivers reliable IP68/IP69K protection for long‑term outdoor or washdown environments, improving uptime and lowering maintenance frequency when used in conveyors or robotic cells. The 1/3 bayonet coupling and crimp contact system streamline field assembly and serviceability, cutting downtime during installations and upgrades in plants with tight electrical rooms or on equipment moving through harsh processes. With operating temperature from −40 °C to 105 °C and UV, oil, and chemical resistance, it supports varied climates and production lines, helping you standardize across Souriau UTS family products. The connector supports up to 250 mating cycles, ensuring durability through multiple reconfigurations and service intervals, which reduces total cost of ownership over the equipment lifecycle.
Get a Quick Quote for a Eaton UTS71210SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71210SY?
Enquire Now
FAQs
UTS71210SY is a jam-nut receptacle from the UTS series that uses a 1/3 bayonet coupling and is designed to mate with Souriau UTS plug kits in 10‑position configurations. Its orientation is Y, and it follows Souriau’s standard crimp contact method, enabling straightforward interchangeability within the UTS family.
The connector supports current ratings of 5 A UL and 6 A IEC, with test current also 5 A UL/6 A IEC and 4 A CSA. It operates from −40 °C to 105 °C, making it suitable for extreme environments and demanding industrial applications.
Yes. It carries IP68 protection and UV resistance, with salt spray endurance (500 hours) and RoHS/REACH compliance, ensuring reliable performance in outdoor, washdown, and exposure‑to‑chemicals scenarios typical of outdoor automation and food processing lines.
UTS71210SY complies with IEC 61984, UL 1977, and CSA‑C22.2 No.182.3, providing validated approvals for interconnects in a wide range of global markets and helping with procurement compliance documentation.
Plan for jam-nut receptacle mounting with the 1/3 bayonet coupling to ensure a secure seal. Use crimp contacts for reliable electrical connections, avoid backshell delivery issues by ordering accessories separately, and maintain within the rated operating temperature and environmental resistances to extend service life and minimize maintenance.
