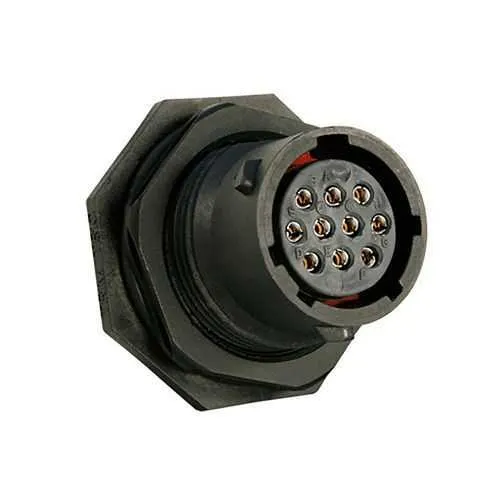

Eaton UTS71210SZ Receptacle Connector - IP68/69K
Part Number: UTS71210SZ
Quick Summary
Eaton UTS71210SZ is a plastic waterproof IP68/69K receptacle connector for harsh industrial environments. Engineers often struggle with moisture ingress, corrosion, and downtime when wiring in outdoor or mobile equipment. Compliance is supported by IEC 61984, UL 1977, and CSA-C22.2 No.182.3, helping you meet regulatory requirements and streamline procurement. This sealed 10-contact connector delivers reliable field serviceability with a jam-nut receptacle, while offering 1/3 bayonet coupling and Z-keying for simple, repeatable installations. In practice, it supports rugged automation panels and mobile machinery while enabling cost-effective maintenance and consistent performance across harsh operating conditions.
Product Information
Extended Description
UTS71210SZ Eaton: Plastic jam nut receptacle, without backshell, for 10 female contacts, IP68/69K, keying Z; UTS71210SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71210SZ
Product Length/Depth
33.9 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
6 A IEC 5 A UL
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
500 hour
Feature → IP68/69K sealing and jam-nut receptacle design delivers superior moisture protection and long-term reliability; Business Impact → Reduces ingress-related faults, lowers maintenance frequency, and extends service life in demanding environments; Application → Ideal for outdoor automation panels and mobile equipment that require sealed connections. Feature → 10-position, crimp contact layout with 1/3 bayonet coupling; Business Impact → Ensures robust mating in tight spaces with fast, repeatable connection; Application → Suitable for compact control assemblies and multi-signal power applications. Feature → Polyamide insert with plastic shell and aluminium nut; Business Impact → Lightweight yet durable housing with good wear resistance; Application → Fits in cost-conscious automation installations needing reliable performance under vibration. Feature → Operating range -40 to 105 °C and UV-resistant materials; Business Impact → Maintains electrical integrity in extreme temperatures and sun-exposed locations; Application → Used in outdoor enclosures and equipment exposed to wide temperature swings. Feature → Wiring flexibility with 10 contacts and crimp delivery as standard; Business Impact → Facilitates clean harnessing and consistent termination; Application → Serves as a versatile receptacle for sensor/actuator networks in industrial settings.
