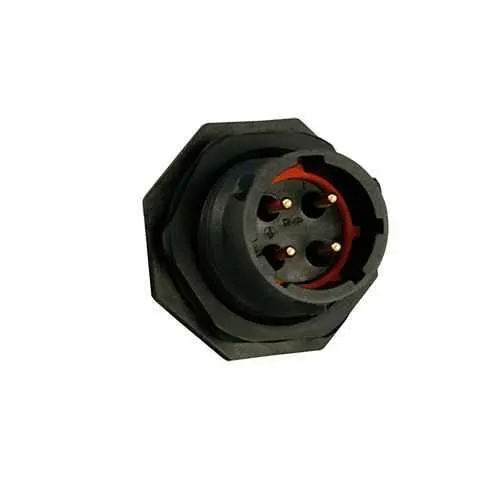

Eaton UTS7124P Receptacle - Waterproof Connector IP68/69K
Part Number: UTS7124P
Quick Summary
Eaton UTS7124P Receptacle is a plastic waterproof connector designed for rugged automation equipment in harsh environments. In such settings, ingress, vibration, and maintenance downtime threaten uptime and drive up costs. It carries IP68/IP69K protection and complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, delivering safe, dependable operation. As part of the Souriau UTS series, the four-crimp-contact jam-nut receptacle leverages a polyamide insert and aluminium nut for a compact, robust interface. The 1/3 bayonet coupling enables quick mating, while first-mate/last-break options support field maintenance. For outdoor, marine, and industrial applications, this connector integrates with existing Eaton connectivity ecosystems, helping reduce inventory complexity and prolong asset life.
Product Information
Extended Description
UTS7124P Eaton: Plastic jam nut receptacle, without backshell, for 4 male contacts, IP68/69K; UTS7124P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7124P
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
13.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
300 V IEC 500 V CSA 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
IP68/69K sealing and a rugged plastic housing protect critical electrical connections in wet, dusty, and submersible-like conditions. This significantly reduces ingress-related failures and downtime, delivering longer service intervals and lower maintenance costs in outdoor automation, mining, and marine applications. The 4-position jam-nut receptacle offers a compact footprint that simplifies harness design and speeds installation, reducing cable routing complexity and field labor time. With 1/3 bayonet coupling, mating is fast and reliable, and optional Last Mate First Break improves serviceability in constrained maintenance scenarios. The UTS7124P supports four crimp contacts, a 25.3 mm length, and 31.8 mm width/height, enabling easy integration into tight spaces. Operating from -40 °C to 105 °C and rated up to 10 A UL / 16 A IEC, it handles demanding automation loads. Materials include polyamide inserts, plastic shells, and aluminium nuts, delivering durability with manageable weight (13.4 g) and a 250 mating-cycle life. Salt spray resistance (500 hours), UV durability, and RoHS/REACH compliance further reduce lifecycle risk. The design aligns with the Souriau UTS ecosystem, facilitating compatibility with matching plugs and accessories (order accessories separately) and minimizing spare-part inventories in large-scale installations.
Get a Quick Quote for a Eaton UTS7124P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7124P?
Enquire Now
FAQs
The UTS7124P is a Jam Nut Receptacle with four crimp contacts designed for the UTS series. It mates with the corresponding plug in a 4-position, 1/3 bayonet configuration and is compatible with standard Souriau UTS connectors. Note that contact delivery and accessory options are not included and must be ordered separately to complete the interface.
IP68/69K sealing provides excellent protection against water immersion and high-pressure wash environments, reducing ingress of dust, water, and contaminants. This translates to improved reliability, longer service life, and lower maintenance costs in outdoor automation, marine, and mining installations where exposure to moisture and debris is common.
Yes. The connector is designed for rugged environments with vibration exposure; it supports 250 mating cycles, which aligns with demanding maintenance schedules. The 1/3 bayonet coupling also enhances vibrational stability during mating and unmating in the field, improving overall connection integrity.
The UTS7124P complies with UL 1977 and CSA-C22.2 No.182.3, and IEC 61984, providing recognized electrical safety and performance certification. Additionally, it meets IP68 sealing requirements, UL94 V0 flammability rating, and RoHS/REACH environmental standards to support regulatory compliance across global deployments.
With four crimp contacts in a compact jam-nut receptacle, the UTS7124P offers quick, reliable field installation and easier harness routing, reducing labor time. Its rugged IP68/69K sealing and UV resistance minimize field failures, while long life ratings (250 mating cycles) and low weight (13.4 g) lower replacement parts and installation costs, delivering measurable ROI in long-term automation projects.
