Eaton UTS7124PSCR UTS Series Plastic Receptacle - IP68/69K
Part Number: UTS7124PSCR
Quick Summary
UTS7124PSCR is a plastic waterproof IP68/69k receptacle designed for demanding industrial environments. Moisture, dust, and temperature fluctuations are common pain points that cause downtime and corrosion if not properly addressed. This connector meets essential standards such as IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, with RoHS exemption 6.c, ensuring compliance in regulated settings. Its 4-contact layout and jam-nut mounting simplify field installation, while its rugged materials support long service life and predictable performance, delivering real business value through reduced maintenance and lower total cost of ownership.
Product Information
Extended Description

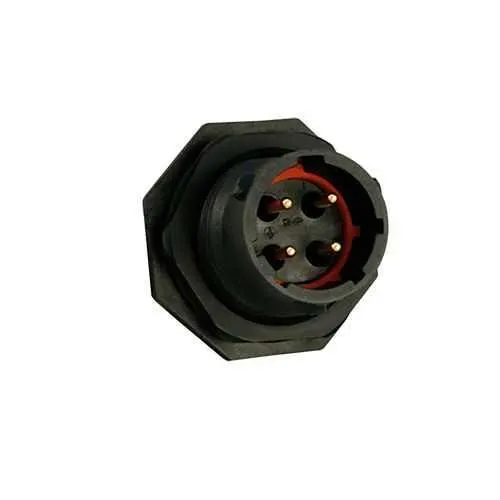

UTS7124PSCR Eaton: Plastic jam nut receptacle,without backshell, for 4 male screw contacts, IP68/69K; UTS7124PSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7124PSCR
Product Length/Depth
46.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
13.4 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against oil Resistant against mineral oil
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
300 V IEC 500 V UL 500 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69k waterproof rating provides superior ingress protection, reducing water and dust intrusion in washdown and outdoor environments, which minimizes unplanned downtime for industrial machinery and agricultural equipment. The 4-contact, gold-plated screw contacts deliver reliable electrical performance in demanding control circuits and power feeds, improving uptime and signal integrity across automation panels and remote installations. The polyamide insert and plastic shell offer UV resistance and chemical compatibility, extending service life in harsh environments like outdoor conveyors and utility equipment. 1/3 bayonet coupling with jam-nut receptacle simplifies installation and maintenance, enabling faster panel assembly and easier access for inspections. The operating temperature range of -40 to 105 °C supports outdoor and high-heat industrial applications while maintaining consistent performance.
Get a Quick Quote for a Eaton UTS7124PSCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7124PSCR?
Enquire Now
FAQs
The UTS7124PSCR offers IP68/69K protection, ensuring excellent ingress resistance against water and dust in washdown and outdoor settings. It is UV resistant and designed to withstand harsh chemicals, oils, and broad temperature ranges, making it suitable for extreme industrial environments.
This jam-nut receptacle supports a 4-contact layout with 1/3 bayonet coupling and gold-plated screw contacts. It is designed for easy mounting in panel apertures, with a robust aluminium nut and a 46.5 mm depth, simplifying field replacement and maintenance while ensuring reliable mating with 4-pin cables.
Ideal for rugged automation, outdoor machinery, conveyors, and washdown environments, the UTS7124PSCR delivers dependable sealing and electrical performance. Its -40 to 105 °C operating range and 250 mating cycles make it suitable for demanding industrial controls and equipment exposed to extreme conditions.
The connector complies with IEC 61984, UL 1977, CSA-C22.2 No. 182.3, and RoHS exemption 6.c, providing regulatory alignment for global applications and assurance for safety-critical installations in regulated sectors.
With 250 mating cycles, corrosion and UV resistance, and a robust plastic/ aluminium construction, the UTS7124PSCR lowers replacement frequency and downtime. Its reliable sealing and easy installation contribute to lower maintenance costs, predictable performance, and improved total cost of ownership in long-life industrial deployments.
