Eaton UTS7124S Connector - IP68/69K
Part Number: UTS7124S
Quick Summary
The Eaton UTS7124S Connector delivers rugged, waterproof connectivity for harsh industrial environments. Engineers confront moisture ingress, corrosion, and unreliable mating in mobile equipment and outdoor installations, leading to downtime and maintenance costs. This receptacle complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, while delivering IP68/IP69K sealing for dependable operation in demanding conditions. The jam-nut receptacle design with four female crimp contacts enables quick field assembly and robust sealing, reducing rework and inventory complexity. By combining a polyamide insert with a plastic shell, it offers lightweight durability, easy sourcing, and consistent performance across harsh environments—supporting uptime and regulatory compliance while simplifying procurement for industrial projects.
Product Information
Extended Description

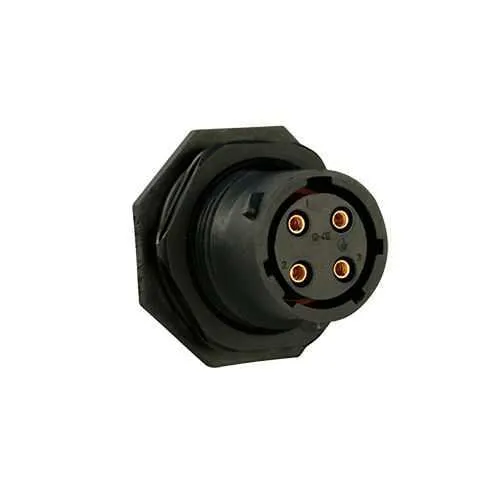

UTS7124S Eaton: Plastic jam nut receptacle, without backshell, for 4 female contacts, IP68/69K; UTS7124S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7124S
Product Length/Depth
33.9 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
13.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Flammability rating UL94 V0
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against gasoline
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
500 V CSA 300 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K waterproof rating paired with a four-cavity layout. Business Impact: Ensures operation in water, dust, and washdown environments, reducing field failures and warranty costs. Application: Outdoor machinery, off-road equipment, and marine-facing automation. Feature: Jam-nut receptacle with 1/3 bayonet coupling and four female crimp contacts. Business Impact: Quick, vibration-resistant mating with reliable seal, accelerating installation and maintenance. Application: Panel connections in rugged automation systems where space is constrained. Feature: Operating temperature range of -40 to 105 °C and UV/oil/acid-resistant materials. Business Impact: Extends service life in extreme climates, lowers replacement cycles, and lowers lifecycle costs. Application: Outdoor substations, heavy machinery, and process plants with thermal cycling. Feature: Mating cycles rated at 250 and salt spray resistance of 500 hours. Business Impact: Demonstrates durable performance under frequent connect/disconnect cycles and harsh chemical exposure, reducing maintenance downtime. Application: Mobile and stationary equipment subject to frequent maintenance. Feature: 4-contact, crimp-style configuration with polyamide insert and aluminum nut. Business Impact: Robust electrical performance with straightforward field termination and improved reliability. Application: Industrial automation harnesses requiring a compact, corrosion-resistant connection. Feature: Compliance with UL 1977, CSA-C22.2 No.182.3, IEC 61984. Business Impact: Meets safety and regulatory expectations across North American and international markets, easing procurement and certification efforts. Application: Medical, industrial, and transportation-related equipment where standards adherence matters.
