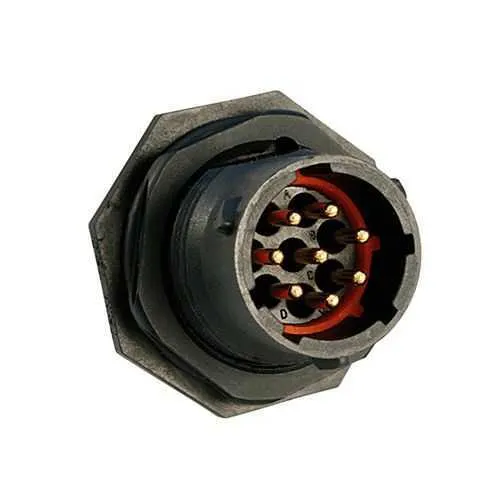

Eaton UTS7128P Plastic Waterproof Receptacle - IP68/69K
Part Number: UTS7128P
Quick Summary
Eaton UTS7128P is a plastic waterproof connector designed for rugged industrial panels and machinery. In the field, failed seals and exposure to water, dust, and vibration can drive costly downtime; this model mitigates that risk with a robust IP68 rating. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, plus compliance traces for RoHS/REACH and UL94 V0 flammability, ensuring broader regulatory acceptance. For panel builders and maintenance teams, the jam-nut receptacle with a 1/3 bayonet coupling delivers secure mating even in tight spaces, while compatible 8-pin crimp contacts simplify procurement. The result is reliable connectivity, reduced maintenance cycles, and a longer service life in harsh environments.
Product Information
Extended Description
UTS7128P Eaton: Plastic jam nut receptacle, without backshell, for 8 male contacts, IP68/69K; UTS7128P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7128P
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against mineral oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 10 A IEC 10 A UL
Test voltage
500 V UL 500 V CSA 80 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
8
Number of cavity #16
8
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K rated plastic connector with water and dust protection. Business Impact: Maintains performance in washdowns and outdoor exposure, reducing unplanned downtime. Application: Outdoor enclosures, heavy machinery, and marine equipment. Feature: 8 contacts with 10 A rating for both IEC and UL standards. Business Impact: Supports multi-signal control and power in a single compact unit, boosting wiring density and efficiency. Application: 8‑wire sensor networks, actuators, and control circuits. Feature: 1/3 Bayonet coupling with jam nut receptacle. Business Impact: Fast, secure mating in confined spaces and challenging installations, lowering install time and field rework. Application: Panel-mount assemblies in compact enclosures. Feature: Operating temperature range from -40 °C to 105 °C. Business Impact: Reliable operation across extreme environments and seasonal variations, improving uptime. Application: Industrial plants, outdoor machinery, and mobile equipment. Feature: Insertion material polyamide and shell material plastic, with UV resistance and salt spray endurance. Business Impact: Long service life with resistance to chemicals, sunlight, and weathering, lowering lifecycle costs. Application: Outdoor, coastal, and chemically challenging sites. Feature: 250 mating cycles and robust fire/flammability rating. Business Impact: Predictable maintenance intervals and safer operation, reducing replacement frequency. Application: Repeated mating in automation panels and field devices.
Get a Quick Quote for a Eaton UTS7128P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7128P?
Enquire Now
FAQs
UTS7128P is a jam nut receptacle in the UTS series designed for eight-pin crimp contacts and 1/3 bayonet coupling. It is compatible with Souriau UTS mating inserts and requires a backshell/accessories to complete the assembly, which are ordered separately.
Current rating is 10 A IEC and 10 A UL. Test current is 7 A CSA, with test voltages of 500 V UL and CSA and 80 V IEC. This combination supports reliable power and signal transmission within standard industrial limits.
Yes. It carries an IP68 rating for water ingress protection, plus UV resistance and salt-spray endurance (500 hours). It also complies with RoHS/REACH and UL94 V0 flammability, making it suitable for outdoor, coastal, and demanding industrial applications.
This connector is compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with additional fire/flame ratings (UL94 V0) and environmental directives (RoHS/REACH) as part of its certification scope.
Plan for a jam nut receptacle in a panel with N orientation, note that no backshell is included, and order accessory options separately. The mating cycles are 250, and the shell size is 12, with 8 contacts in a compact footprint suitable for tight panel layouts.
