Eaton UTS7128SM20 Connector - IP68/69K Waterproof
Part Number: UTS7128SM20
Quick Summary
Eaton UTS7128SM20 is a plastic waterproof IP68/69K connector designed for harsh industrial environments. Engineers often struggle with moisture ingress, corrosion, and unreliable field maintenance when wiring in equipment exposed to dust, water, and vibration. This design aligns with IP68/69K sealing and trusted certifications such as UL 1977, IEC 61984, and CSA-C22.2 No. 182.3, while also offering UV resistance and flame-retardant attributes. In practice, the solution reduces downtime and simplifies maintenance with a compact 8‑cavity receptacle, enabling safer, faster field servicing and consistent connectivity across demanding automation panels and outdoor machinery.
Product Information
Extended Description

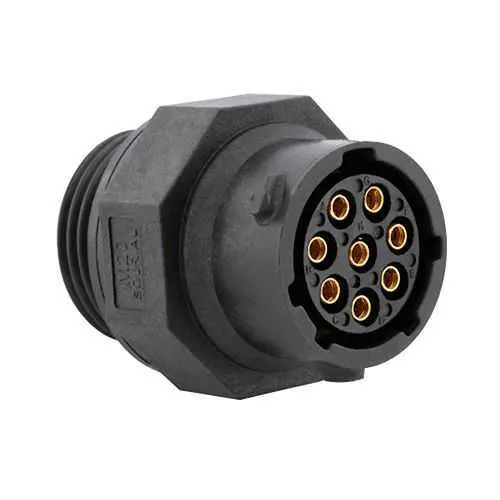

UTS7128SM20 Eaton: Plastic threaded receptacle, without backshell, for 8 female contacts, IP68/69K; UTS7128SM20
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7128SM20
Product Length/Depth
21.7 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
12.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
REACH Fire & Smoke RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath Resistant against basic bath Resistant against mineral oil Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
80 V IEC 500 V UL 500 V CSA
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
Feature: IP68/IP69K sealing and rugged environmental resistance → Business Impact: Ensures reliable operation in washdown and dusty environments, reducing failure rates and maintenance cycles → Application: Outdoor machinery, food & beverage line equipment, and automated washdown stations. Feature: 8‑contact, 10 A rated receptacle with 21.7 mm depth and 31.8 mm width → Business Impact: High-density connectivity in tight panels while maintaining current handling and voltage integrity → Application: Sensor/actuator networks in compact automation cabinets. Feature: 1/3 Bayonet coupling with threaded receptacle and optional last/first mate break → Business Impact: Fast, secure mating with easy disconnection for rapid maintenance or swaps → Application: Robotic arms, conveyors, and mobile equipment where uptime matters. Feature: Polyamide insert and plastic shell with UV resistance → Business Impact: Long-term outdoor durability and reduced ingress of contaminants, lowering replacement costs → Application: Agricultural, mining, and outdoor automation. Feature: Mating cycles up to 250 with -40 °C to 105 °C operating range and 500 hour salt spray resistance → Business Impact: Excellent lifecycle performance in demanding environments, improving total cost of ownership → Application: Industrial automation panels and field-installed harnesses. Feature: Compliance with UL 1977, CSA-C22.2 No. 182.3, IEC 61984 and flammability rating UL94 V0 → Business Impact: Enables regulatory alignment and safe installation across regulated markets → Application: Military-grade and civilian automation projects requiring robust certifications. Feature: Fitted with crimp contact delivery and no backshell option → Business Impact: Simplified procurement and installation with clear scope, reducing compatibility risk → Application: Standardized harness assemblies in control cabinets and portable equipment.
Get a Quick Quote for a Eaton UTS7128SM20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7128SM20?
Enquire Now
FAQs
The UTS7128SM20 uses a threaded receptacle with a 1/3 Bayonet coupling for secure mating. It supports crimp contacts and offers last mate first break capability as an option. Note there is no backshell accessory. In practice, secure mounting and clean mating surfaces are essential for achieving IP68/69K protection and reliable, vibration-resistant connections in rugged settings.
This connector provides a 10 A current rating with test voltages of 80 V IEC and 500 V UL/CSA. It houses 8 contacts and maintains performance across a broad operating range, making it suitable for sensors, actuators, and general automation circuits while ensuring safety and regulatory compliance.
Yes. With IP68/IP69K sealing, UV resistance, and salt spray resistance up to 500 hours, the connector maintains integrity in outdoor, wash-down, and dusty environments. Its compact form factor and robust materials reduce long-term maintenance needs for outdoor automation, conveyors, and agricultural machinery.
The unit complies with UL 1977, CSA-C22.2 No. 182.3, and IEC 61984, supporting regulatory alignment across North American and international markets. This makes it easier to certify equipment and reduces time-to-market for automated systems deployed in regulated industries, while the UL94 V0 flammability rating adds safety for consumer or industrial installations.
The UTS7128SM20 delivers up to 250 mating cycles under typical conditions, with a operating temperature range from -40 to 105 °C and 500-hour salt spray resistance. Optional features like last mate first break provide serviceability in field swaps, helping to minimize downtime and extend equipment uptime in challenging environments.
