Eaton UTS712D4P Receptacle - IP68/69K Waterproof Connector
Part Number: UTS712D4P
Quick Summary
The Eaton UTS712D4P receptacle delivers rugged, waterproof connectivity for harsh industrial environments and equipment assemblies. Installing in moisture-prone areas can be slowed by missing backshell options and unclear IP ratings, but this unit ships as a jam-nut receptacle with 4 PCB pins and no backshell, simplifying field installs. It meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984 with ROHS exemption 6.c, delivering safety, interoperability, and compliance across global projects. Part of the Souriau UTS series, this 4-contact, 12-shell plastic connector provides IP68 protection and reliable mating cycles, helping you reduce downtime while simplifying procurement for rugged machinery, robotics, and field installations.
Product Information
Extended Description

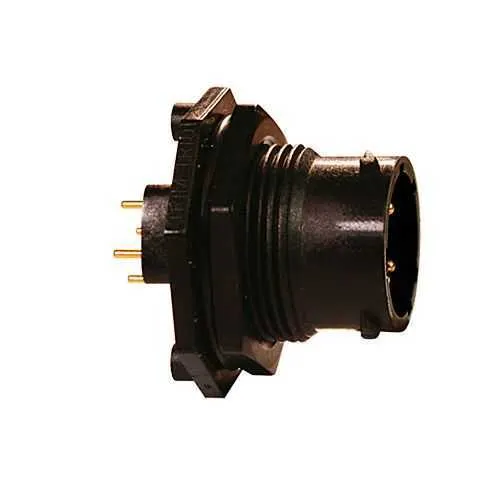

UTS712D4P Eaton: Plastic jam nut receptacle, without backshell, with 4 male PCB contacts, IP68/69K in unmated conditions; UTS712D4P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS712D4P
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
15.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against oil Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
10 A UL 16 A IEC 7 A CSA
Test voltage
500 V UL 500 V CSA 300 V IEC
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K protection in unmated conditions; Business Impact: ensures ingress protection during maintenance and disconnects, minimizing downtime and field rework; Application: robotics, automated washdown lines, and outdoor machinery. The robust seal supports reliable operation in challenging environments where connectors are frequently mated and unmated. Feature: Four gold-plated PCB contacts; Business Impact: enhances signal integrity and corrosion resistance for long-term performance in harsh environments; Application: control panels, sensors, and instrumentation networks. Feature: 1/3 bayonet coupling; Business Impact: enables fast, tool-free mating with proven retention, reducing service time in the field; Application: quick-change assemblies and rugged conveyors. Feature: Jam Nut Receptacle with no backshell; Business Impact: simplifies installation and minimizes accessory parts while maintaining a compact footprint; Application: panel-mounted interfaces in tight spaces. Feature: Wide operating temperature range and durability; Business Impact: supports -40 °C to 105 °C and up to 250 mating cycles for consistent uptime; Application: heavy machinery, robotics, and outdoor equipment. Together these attributes translate to lower maintenance costs, higher uptime, and dependable regulatory compliance in demanding industrial settings.
Get a Quick Quote for a Eaton UTS712D4P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS712D4P?
Enquire Now
FAQs
Mount the receptacle with the jam nut as specified, noting that backshells are not included. Plan the panel cutout for a flush, sealed fit and follow Souriau UTS installation guidelines to ensure proper IP68 sealing and mating clearance.
Yes. It delivers IP68 protection in unmated conditions and is designed for rugged environments, including resistance to oils, UV exposure, and washdowns typical of outdoor equipment and manufacturing floors.
Current rating is 10 A UL or 16 A IEC, with test currents of 10 A UL, 16 A IEC, and 7 A CSA. Voltage ratings are 500 V UL/CSA and 300 V IEC, supporting control and instrumentation circuits in demanding applications.
The connector is rated for up to 250 mating cycles and operates from -40 °C to 105 °C, ensuring reliable performance across broad temperature conditions in industrial environments.
The assembly complies with UL 1977, CSA-C22.2 No.182.3, IEC 61984, and ROHS exemption 6.c, supporting safety, interoperability, and environmental requirements for global deployments.
