Eaton UTS712D4P32 Connector - IP68/69K Receptacle
Part Number: UTS712D4P32
Quick Summary
Eaton UTS712D4P32 is a plastic waterproof IP68/69K connector designed for rugged automation and outdoor equipment. Engineers often face downtime and field failures in harsh environments; this design reduces risk with a jam nut receptacle, hold-down Clips, and a robust 1/3 bayonet coupling. It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 (RoHS exemption 6.c), ensuring safety and interoperability across industrial controls. With four PCB contacts and a compact footprint, it delivers reliable power and signal paths while simplifying maintenance and installation in automation projects. This makes it well-suited for demanding applications in industrial automation and outdoor machinery where dependable connectivity is critical.
Product Information
Extended Description

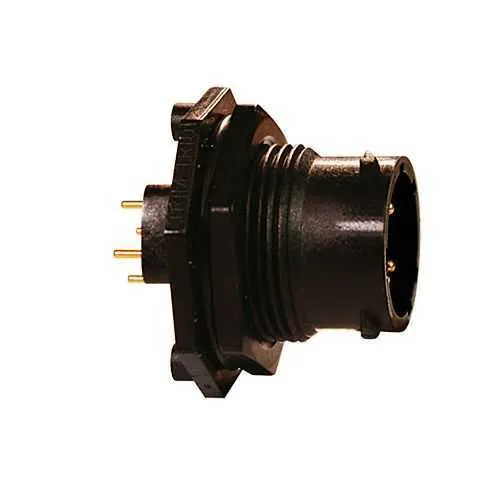

UTS712D4P32 Eaton: Plastic jam nut receptacle & hold down clips,without backshell, with 4 male PCB contacts, IP68/69K in unmated conditions; UTS712D4P32
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS712D4P32
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
15.4 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against mineral oil Resistant against gasoline Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
500 V CSA 500 V UL 300 V IEC
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K sealing and rugged plastic shell; Benefit: protection against water, dust, and oil ingress reduces failure rates in harsh environments; Application: outdoor equipment and wash-down areas in manufacturing lines. Feature: 16 A IEC / 10 A UL current rating; Benefit: supports high-load devices with safe, standards-compliant operation; Application: motor drives, sensors, and control circuits in automated systems. Feature: 4 gold-plated PCB contacts; Benefit: low contact resistance and durable signal/power transmission; Application: reliable PCB-mounted connections in compact assemblies. Feature: 1/3 bayonet coupling; Benefit: fast, secure mating with simple field maintenance; Application: rapid field replacements in maintenance-critical installations. Feature: Jam Nut Receptacle with hold-down clips; Benefit: straightforward panel mounting and vibration resistance, reducing assembly time; Application: on-machinery panels and connected enclosures. Feature: Operating range -40 °C to 105 °C and UV/mineral oil resistance; Benefit: extended service life in extreme environments; Application: outdoor automation gear, marine equipment, and industrial vessels. Feature: 250 mating cycles; Benefit: predictable lifecycle and lower replacement costs; Application: equipment subject to frequent connector mating.
Get a Quick Quote for a Eaton UTS712D4P32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS712D4P32?
Enquire Now
FAQs
For panel mounting, use the jam nut receptacle with optional hold-down clips. The design is without a backshell, and the connector uses a 1/3 bayonet coupling for quick, secure mating. The footprint supports four PCB contacts and a ground cavity layout, while the orientation is defined as N. This setup simplifies installation and reduces alignment errors in tight panel spaces.
The unit carries a current rating of 16 A IEC / 10 A UL, with test currents up to 16 A IEC and 7 A CSA / 10 A UL in standardized tests. Test voltage ratings are 500 V CSA/UL and 300 V IEC. These specs support safe operation for power and signal paths in automated systems, while enabling compliance with multiple regional standards.
Yes. The connector is specified IP68 with IP69K capability in unmated conditions, ensuring watertight performance under immersion and high-pressure wash-downs. It uses a Neoprene insert within a plastic shell to resist mineral oil, gasoline, and basic baths, making it ideal for outdoor, industrial, and marine equipment where contamination and moisture are concerns.
The UTS712D4P32 complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c noted. These certifications support safe, interoperable use across electrical and automation systems. Always verify current documentation for any regional amendments or additional approvals required for your application.
With 250 mating cycles and a robust IP68/69K seal, maintenance downtime is reduced and lifecycle costs are lowered. The gold-plated PCB contacts ensure stable conductivity, while the 4-pin layout supports compact, reliable power/signal paths. The absence of a backshell simplifies installation, lowers accessory costs, and reduces repair time in field service scenarios.
