Eaton UTS712D4S Receptacle - IP68/69K Waterproof Connector
Part Number: UTS712D4S
Quick Summary
Eaton UTS712D4S plastic waterproof IP68/69K receptacle provides secure PCB connections for rugged equipment. In the field, limited backshell options and extreme conditions can drive costly downtime and maintenance. This solution carries ROHS exemption 6.c, CSA-C22.2 No. 182.3, UL 1977 and IEC 61984 certifications for global compliance. By combining a 4‑cavity PCB layout with 1/3 bayonet coupling and a compact jam nut form, it speeds installation and reduces lifecycle costs while ensuring long‑term reliability. Engineers will appreciate its 25.3 mm depth, 31.8 mm width/height, and 4‑contact configuration suitable for compact control panels. Its gold‑plated PCB contacts and robust IP68/69K sealing help meet demanding uptime targets in automation and mobility projects.
Product Information
Extended Description

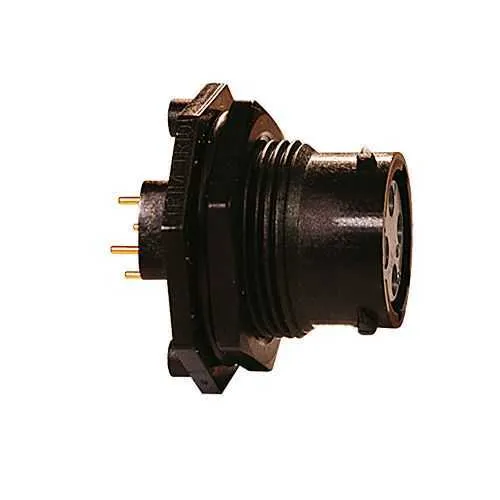

UTS712D4S Eaton: Plastic jam nut receptacle, without backshell, with 4 female PCB contacts, IP68/69K in unmated conditions; UTS712D4S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS712D4S
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
16.9 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against acid bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 16 A IEC 10 A UL
Test voltage
300 V IEC 500 V CSA 500 V UL
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
IP68/69K sealing and rugged plastic shell deliver durable immersion and dust protection, reducing seal degradation and maintenance costs in outdoor or oil-exposed environments. This translates to longer service intervals, lower repair frequency, and higher machine availability when used on mobile equipment or outdoor automation panels. The 4‑cavity, 4‑contact layout enables denser PCB interconnects, improving signal and power routing in compact control enclosures and backplanes. 1/3 bayonet coupling provides quick, reliable mating with minimal tooling, speeding assembly on production lines and reducing labor costs. The jam-nut receptacle design simplifies panel mounting and lowers hardware requirements by eliminating the need for a separate backshell in many installations. Gold-plated contacts enhance corrosion resistance and ensure stable electrical performance over the product’s lifecycle. Operating from −40 °C to 105 °C and with a 250 mating cycle rating, the UTS712D4S supports high-demand automation environments while maintaining electrical integrity. Compatibility with Souriau UTS series components enables scalable system design for modular automation architectures and future upgrades.
Get a Quick Quote for a Eaton UTS712D4S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS712D4S?
Enquire Now
FAQs
Install the jam-nut receptacle from the panel front, align the 4 cavity contacts, and tighten the jam nut to spec. There is no backshell option, so ensure the panel cutout accommodates the 25.3 mm depth and 31.8 mm width/height. Use appropriate sealant or mating interface for environment-specific requirements to maintain IP68/69K performance.
It provides a 16 A current rating (IEC) and up to 10 A (UL) per contact, with test current of 16 A IEC and test voltage up to 300 V IEC (500 V CSA/UL). The contacts are gold-plated PCB type, arranged in a 4‑cavity layout, suitable for reliable panel interconnects under demanding conditions.
Yes. The connector offers IP68 protection and resistance to mineral oil, UV exposure, and chemical baths. It operates from −40 °C to 105 °C and withstands vibrations per IEC tests, making it appropriate for outdoor equipment, heavy machinery, and mobile automation applications.
The unit complies with ROHS exemption 6.c, CSA-C22.2 No. 182.3, UL 1977, and IEC 61984, indicating suitability for international use in industrial automation, control panels, and safety-critical equipment. These certifications support regulatory acceptance, supplier qualification, and risk management for global deployments.
The combination of IP68/69K sealing, four PCB contacts, and a compact 1/3 bayonet coupling reduces maintenance frequency and assembly time. Fewer components (no backshell required in many installations) lower upfront costs, while robust sealing and durable materials translate to longer intervals between service and lower total cost of ownership in demanding environments.
