Eaton UTS712E4P Connector - Waterproof IP68/69K
Part Number: UTS712E4P
Quick Summary
The Eaton UTS712E4P is a waterproof connector designed for rugged industrial wiring and field installations. Moisture ingress, unreliable mating, and downtime cost maintenance teams in harsh environments. With IP68/69K protection and certifications including UL 1977, CSA C22.2 No.182.3, and IEC 61984, it meets demanding safety and reliability standards. In practice, this enables longer service life, simpler installations, and lower maintenance costs for automated machinery and outdoor equipment.
Product Information
Extended Description

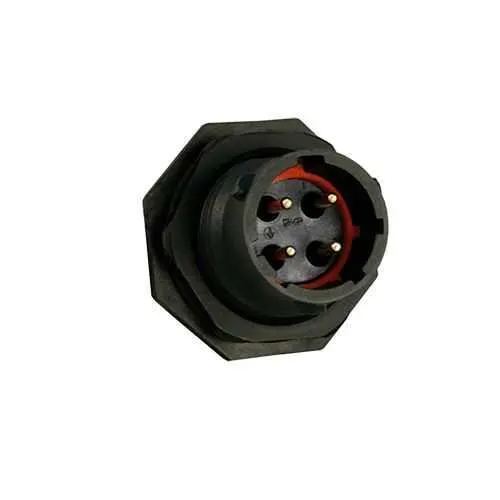

UTS712E4P Eaton: Plastic jam nut receptacle, without backshell, with 4 male solder contacts, IP68/69K in unmated conditions; UTS712E4P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS712E4P
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
14.7 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
16 A IEC 10 A UL 7 A CSA
Test voltage
500 V CSA 300 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
