Eaton UTS712E4S Receptacle - IP68/IP69K Waterproof
Part Number: UTS712E4S
Quick Summary
Eaton UTS712E4S is a plastic waterproof IP68/69K receptacle connector for rugged industrial and outdoor equipment. Engineers often struggle with sealing failures and corrosion in wet environments, causing downtime. Compliances include IEC 61984, RoHS exemption 6.c, UL 1977, and CSA-C22.2 No.182.3, supporting reliability across harsh sites. Its four female solder contacts and 1/3 bayonet coupling simplify field assembly, while robust IP ratings and approved materials help reduce maintenance and lifecycle costs. This combination delivers a reliable, easy-to-source solution for demanding applications, enabling OEMs to shorten installation times, improve field serviceability, and lower total cost of ownership in challenging environments.
Product Information
Extended Description

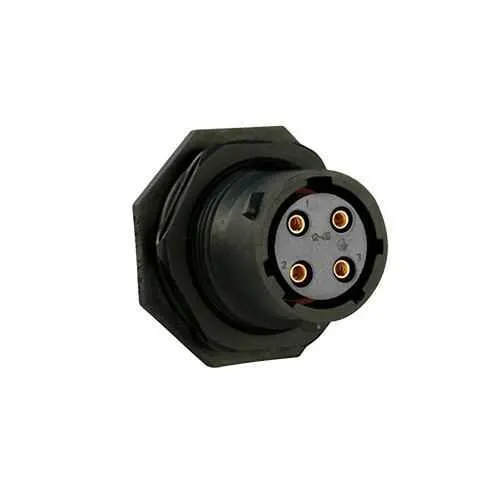

UTS712E4S Eaton: Plastic jam nut receptacle, without backshell, with 4 female solder contacts, IP68/69K in unmated conditions; UTS712E4S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS712E4S
Product Length/Depth
25.3 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
16.3 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Layout with ground cavity Last mate first break capability(optional) First mate last break capability
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil
Test current
16 A IEC 7 A CSA 10 A UL
Test voltage
500 V CSA 500 V UL 300 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
The UTS712E4S uses a jam nut receptacle design with a 1/3 bayonet coupling that delivers quick, tool-free mating in rugged environments, reducing downtime during service intervals and improving installation efficiency for field technicians. This configuration supports a 16 A IEC / 10 A UL current rating and a 500 V test voltage, which translates into robust power delivery for machinery and equipment while maintaining safety margins in harsh conditions. The four-contact, gold-plated solder cup arrangement ensures dependable signal and power transmission with low contact resistance across lifecycle mating cycles (up to 250), improving reliability in vibration-heavy applications such as industrial conveyors and mobile equipment. The IP68 rating, combined with neoprene insert material and plastic shell, provides durable water and dust sealing, minimizing ingress risks in washdown zones and outdoor environments. Compatibility with Souriau UTS series components and the jam nut receptacle format streamlines spares inventory and prevents compatibility headaches during capital upgrades. Industry-specific benefits include predictable maintenance planning, reduced replacement parts, and a clear path to compliance with IEC 61984, UL 1977, and CSA standards, helping procurement teams meet regulatory expectations while delivering measurable uptime gains. The design also supports UV resistance and resistance to various chemical exposures, making it suitable for long-term deployment in automotive, marine, and heavy equipment settings where continuous operation is paramount.
Get a Quick Quote for a Eaton UTS712E4S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS712E4S?
Enquire Now
FAQs
UTS712E4S is designed as a jam nut receptacle in the Souriau UTS family, with a 1/3 bayonet coupling and 4 contact cavities. It mates with corresponding UTS plugs and is specified for IP68 sealing in unmated conditions. For best results, pair with a compatible backshell option ordered separately and ensure orientation is set to N as indicated in product specs.
The device is rated for 16 A IEC and 10 A UL, with a test voltage of up to 500 V CSA/UL and 300 V IEC. Contact plating is gold, and the contact type is solder cup, providing reliable conductivity and corrosion resistance suitable for demanding industrial environments.
Yes. It carries IP68 protection and UV-resistant materials, with environmental resistance that includes resistance to acids, oils, and basic baths. Operating temperature ranges from -40 °C to 105 °C, making it appropriate for outdoor, washdown, and vehicle-mounted applications requiring durable sealing and temperature tolerance.
Certifications include IEC 61984, RoHS exemption 6.c, CSA-C22.2 No.182.3, and UL 1977. These ensure electrical safety, environmental compliance, and suitability for use in North American and international markets, helping you meet procurement standards and regulatory requirements on industrial projects.
The four-contact, gold-plated solder cups and jam-nut design reduce maintenance downtime and field installation time, while the IP68/69K sealing minimizes ingress-related failures. Over the product life, this translates to lower spare-part costs, fewer service interventions, and improved asset uptime, which collectively improve total cost of ownership in harsh environments.
