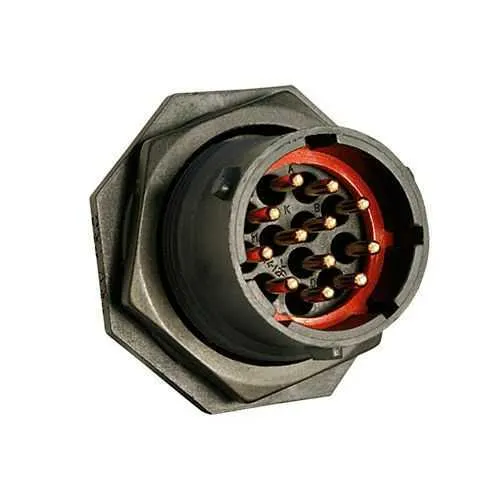

Eaton UTS71412P Receptacle Connector - IP68/69K Waterproof
Part Number: UTS71412P
Quick Summary
The Eaton UTS71412P Receptacle Connector delivers a rugged, 12-position interface for harsh industrial environments. In the field, moisture ingress and downtime challenge maintenance teams; this design minimizes seal failure and water intrusion. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, and delivers IP68 protection for reliable washdown and outdoor use. Coupled with 12-position crimp contacts and a compact footprint, it supports efficient procurement, quick installation, and long service life. This combination helps you reduce downtime, improve traceability, and meet stringent industry standards across automation and machinery.
Product Information
Extended Description
UTS71412P Eaton: Plastic jam nut receptacle, without backshell, for 12 male contacts, IP68/69K; UTS71412P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71412P
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Test current
10 A UL 10 A IEC 7 A CSA
Test voltage
600 V UL 600 V CSA 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
The UTS71412P uses a jam Nut Receptacle with a 12-position layout and a 1/3 bayonet coupling to deliver a robust, sealed interface that minimizes ingress risk in washdown environments. The IP68/IP69K rating translates to fewer field failures due to moisture, enabling longer service intervals and lower maintenance costs in outdoor or harsh settings. Its 12 crimp contacts in a compact 33.9 mm by 34.9 mm footprint provide a balance between density and ease of wiring, while the aluminium nut and polyamide insert ensure reliable mechanical retention and chemical resistance. With a rated 10 A current and up to 600 V test voltage, this connector supports control and power circuits in automated equipment. The 250 mating cycles exceed typical field-life expectations, reducing replacement cycles and total cost of ownership. The design also accommodates optional First Mate Last Break or Last Mate First Break capabilities, supporting flexible system design and easier replacement. Materials and build, including UV resistance and salt spray endurance, reinforce durability in demanding environments, and RoHS/REACH compliance simplifies procurement for regulated industries. Compatibility with standard crimp terminals and a modular accessory approach helps streamline installation and provisioning in manufacturing lines, outdoor enclosures, and rugged machinery.
Get a Quick Quote for a Eaton UTS71412P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71412P?
Enquire Now
FAQs
Install the UTS71412P as a jam-nut receptacle for a clean, sealed panel fit. Position the 12-pin insert, thread the aluminium jam nut against the panel, then rotate the 1/3 bayonet coupling to lock with the mating connector. Crimp terminals are used; backshells are not included and must be ordered separately.
The connector is rated for 10 A per IEC and UL, with a test current of 10 A IEC/UL and a test voltage of 600 V UL/CSA (63 V IEC). It uses 12 crimp contacts in a 12-cavity layout and is designed to meet common control and light-power application requirements in industrial equipment.
Yes. The UTS71412P features IP68 protection (IP69K compatible) and a plastic shell with a polyamide insert, providing resistance to oil, UV exposure, and chemical environments. It operates from -40 °C to 105 °C, making it well suited for harsh outdoor and washdown installations in automation and heavy equipment.
The UTS71412P complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with additional safety features such as UL94 V0 flammability rating and RoHS/REACH compliance. These certifications support regulatory procurement needs and ensure suitability for regulated industrial environments.
The connector offers about 250 mating cycles, designed for maintenance-heavy equipment. It uses a polyamide insert inside a plastic shell, with an aluminium jam nut. The 12-position layout uses crimp contacts and a 1/3 bayonet coupling, delivering reliable engagement and ease of servicing in demanding settings.
