Eaton UTS71419PW Receptacle - IP68/69K Waterproof
Part Number: UTS71419PW
Quick Summary
Eaton UTS71419PW is a plastic waterproof IP68/69K receptacle connector for rugged industrial harnesses. This solution addresses field downtime by delivering reliable seals and a straightforward mating sequence in harsh environments. It meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, offering regulatory confidence across North America and Europe. The 19‑way layout and jam-nut design minimize space while maximizing contact density, enabling compact harnessing in tight machines. Built for demanding conditions, it supports continuous operation from -40 °C to 105 °C and a vibration‑resilient profile. By combining durable materials with a lightweight form, it reduces maintenance costs and simplifies spares management for OEMs and integrators. The Souriau UTS series presence reinforces compatibility with a broad ecosystem of IP68 connectors.
Product Information
Extended Description

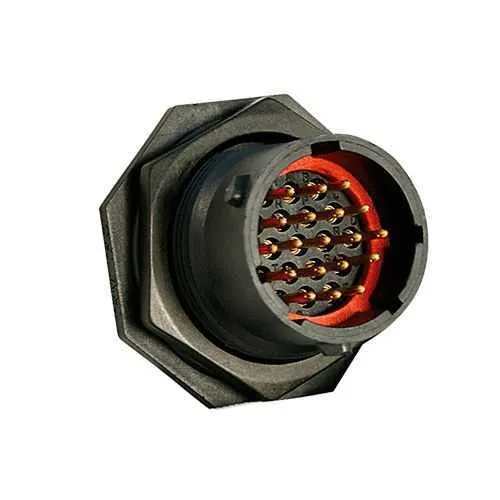

UTS71419PW Eaton: Plastic jam nut receptacle, without backshell, for 19 male contacts, IP68/69K, keying W; UTS71419PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419PW
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A IEC 5 A UL
Environmental conditions
Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 5 A IEC 5 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K waterproof protection. Business impact: Keeps internal contacts and electronics safe from water, dust, and washdowns, reducing failure rates and warranty claims. Application: Outdoor machinery, food processing lines, and washdown environments. Feature: 19-position jam-nut receptacle. Business impact: Maximizes contact density in a compact footprint, enabling cleaner, faster harnessing and panel mounting. Application: Control panels and robotic arms with limited space. Feature: 1/3 Bayonet coupling. Business impact: Quick, secure mating with reliable vibration resistance, lowering installation time and rework. Application: Field service and assembly in tight equipment enclosures. Feature: Operating temperature range -40 °C to 105 °C. Business impact: Predictable performance across extreme climates, reducing thermal-related downtime. Application: Heavy industrial, outdoor equipment, and automotive environments. Feature: 250 mating cycles. Business impact: Long service life lowers maintenance cycles and total cost of ownership. Application: OEM gearboxes, conveyors, and automation modules. Feature: Insert material Polyamide; Shell material Plastic; Aluminium nut. Business impact: Lightweight yet sturdy construction, improving handling during installation and reducing wear. Application: Harsh environment connectors requiring durable yet pliable housings. Feature: RoHS/REACH compatible; UV resistant. Business impact: Compliance with environmental regulations and long-term outdoor reliability. Application: Industrial automation, energy, and transportation sectors.
