Eaton UTS71419PX Plastic Receptacle - IP68/69K
Part Number: UTS71419PX
Quick Summary
Eaton UTS71419PX is a plastic waterproof IP68/69K 19‑pin receptacle designed for rugged industrial applications. Engineers often contend with moisture ingress, vibration, and maintenance overhead when wiring in outdoor or mobile equipment. This connector meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, while delivering UV resistance and a wide operating temperature range for reliability in harsh environments. With a lightweight polyamide insert and a jam-nut mounting style, it supports fast, secure panel wiring and durable field service, reducing downtime and spare parts requirements in automation projects and mobile machinery.
Product Information
Extended Description

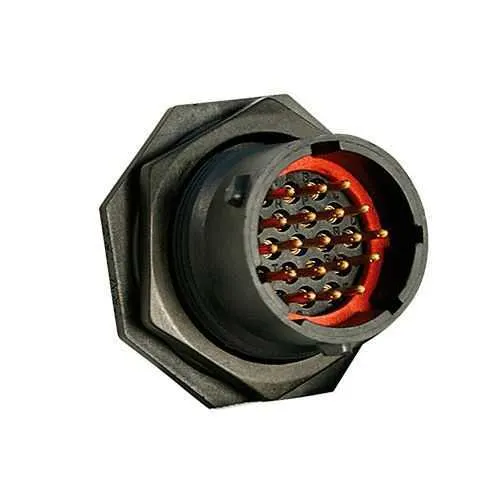

UTS71419PX Eaton: Plastic jam nut receptacle, without backshell, for 19 male contacts, IP68/69K, keying X; UTS71419PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419PX
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A CSA 5 A UL 5 A IEC
Test voltage
250 V UL 250 V CSA 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
IP68/69K sealing and a jam-nut receptacle design provide a watertight interface that withstands temporary submersion and high-pressure washdowns, reducing ingress-driven failures and maintenance costs. This translates to longer service intervals and lower total cost of ownership for outdoor equipment and wet environments in automation lines. The 19‑contact layout with crimp contacts and 1/3 bayonet coupling simplifies harness design, ensuring secure mating under vibration and decreasing troubleshooting time during commissioning and repairs. Operating from -40 to 105 C with UV resistance, the connector enables safe, reliable performance across extreme climates and long outdoor exposure, minimizing unplanned downtime. With 250 mating cycles and a durable aluminium nut, it offers robust mechanical retention and economical field replacements for robotics and process automation. Compliance with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 aligns to regulatory expectations, easing OEM certification trails. Compatibility with UTS series accessories and the option to source backshells separately streamline installation and inventory management for system integrators and distributors.
