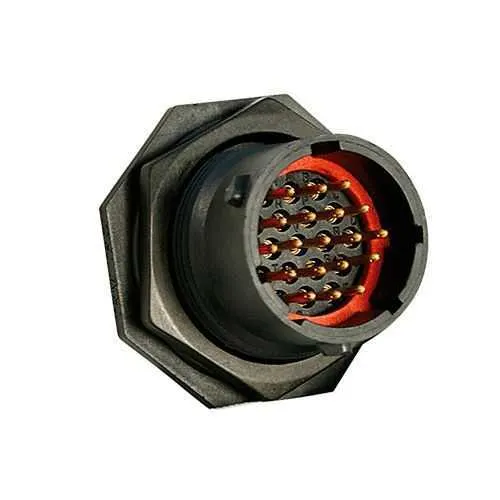

Eaton UTS71419PY Plastic IP68/69k Receptacle - 19 Contacts
Part Number: UTS71419PY
Quick Summary
The Eaton Souriau UTS71419PY plastic waterproof IP68/69k connector delivers rugged, reliable connections for harsh-environment machinery. In the field, ingress, corrosion, and maintenance downtime drive up costs and complicate repairs. It meets IP68 protection and complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards. Designed for demanding industrial automation, this jam-nut receptacle supports quick field replacements and reliable sealing, while enabling straightforward accessories and mounting.
Product Information
Extended Description
UTS71419PY Eaton: Plastic jam nut receptacle, without backshell, for 19 male contacts, IP68/69K, keying Y; UTS71419PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419PY
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS REACH Fire & Smoke
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath
Test current
5 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
IP68/69K protection delivers robust ingress resistance in wet, dusty environments, reducing field repairs and downtime on equipment. The 19-pin layout supports multi-signal and power networks, enabling compact, streamlined harnessing on robots and packaging lines. The 1/3 bayonet coupling speeds mating and improves vibration resilience, lowering cycle times and improving uptime. A polyamide insert and plastic shell provide chemical resistance and extended life in oil, fuel, and mineral oil environments, while maintaining electrical performance. Rated at 5 A per UL and IEC, this connector supports reliable control and sensing loops without oversizing wiring harnesses. With 250 mating cycles and a Y-key orientation, installation is straightforward and field service is simplified, minimizing rework costs. The jam-nut receptacle design ensures a secure seal and easy mounting in constrained enclosures, reducing maintenance frequency and extending equipment life in demanding industrial settings. Compatibility with Souriau UTS series accessories and available backshell options further simplify system integration and lifecycle planning for OEMs and end users.
