Eaton UTS71419SW Receptacle - IP68 Waterproof
Part Number: UTS71419SW
Quick Summary
The Eaton UTS71419SW Receptacle is a plastic waterproof IP68/69K connector for rugged machine and field-hardened systems. Many users struggle with ingress and corrosion in harsh environments, leading to costly downtime. This UTS series solution delivers IP68 protection, UL 1977 compatibility, and IEC 61984 compliance, ensuring safe, reliable operation in demanding installations. By pairing a compact jam-nut receptacle with robust materials and a proven mating interface, it enhances connector longevity, reduces maintenance, and supports scalable automation deployments in harsh outdoor or industrial settings.
Product Information
Extended Description

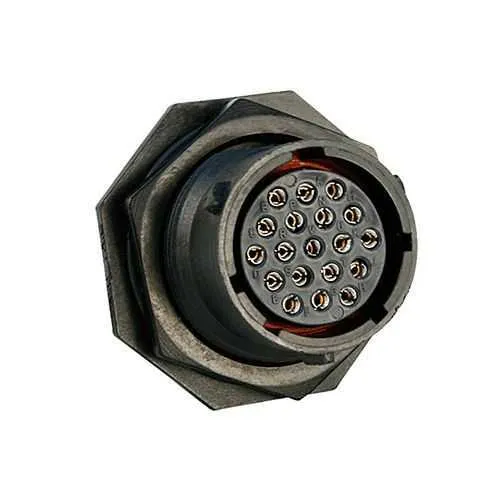

UTS71419SW Eaton: Plastic jam nut receptacle, without backshell, for 19 female contacts, IP68/69K, keying W; UTS71419SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419SW
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
5 A IEC 5 A UL 4 A CSA
Test voltage
32 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
Feature is IP68/69K protection and jam-nut receptacle construction, delivering reliable ingress protection and easy panel mounting. Business impact is extended service life in wet, dusty, and vibration-prone environments, reducing unplanned downtime and service costs. Application wise, ideal for outdoor equipment, robotics, and heavy machinery where seals and ruggedization matter. Feature 19 contact positions with a 5 A IEC/UL current rating enables multi-circuit harnessing without extra housings, streamlining wiring and reducing footprint in control cabinets. This supports tighter panel design and improved wiring reliability in automation lines. Feature 1/3 bayonet coupling offers fast mating and secure retention, cutting installation time and minimizing field rework. Combined with polyamide insert and aluminium nut, it delivers chemical resistance, UV stability, and durable performance in inconsistent climates. The operating temperature range from -40 °C to 105 °C further ensures system resilience across seasons, while 250 mating cycles indicate long-term lifecycle reliability. Note that the connector accessory option is not delivered and must be ordered separately, enabling tailored protection and backshell configurations as needed.
