Eaton UTS71419SX Plastic Waterproof Connector - IP68/69K
Part Number: UTS71419SX
Quick Summary
The UTS71419SX plastic waterproof IP68/69K connector from Eaton delivers a rugged, sealed connection for harsh outdoor and mobile equipment. Users often struggle with ingress, vibration, and maintenance downtime in demanding environments, and reliable connectors are critical to uptime. This receptacle meets IEC 61984, UL 1977, and CSA standards, providing dependable performance across certifications that matter in automotive, industrial, and outdoor machinery. By combining a compact 19‑cavity layout with a robust seal, it offers repeatable, field‑friendly installation while enabling scalable harness designs. The result is reduced wiring errors, faster assembly, and lower lifecycle costs, with enhanced resistance to oils, UV exposure, and temperature extremes yet straightforward replacement when needed.
Product Information
Extended Description

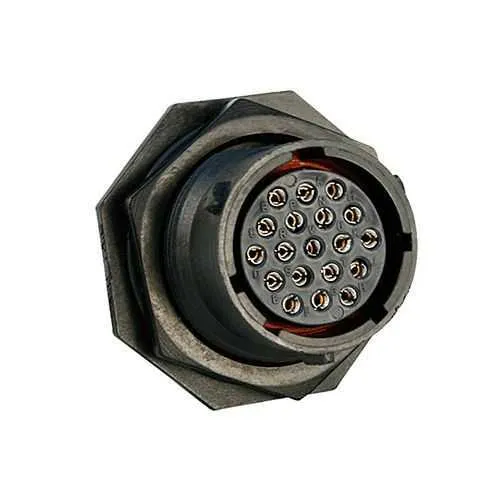

UTS71419SX Eaton: Plastic jam nut receptacle, without backshell, for 19 female contacts, IP68/69K, keying X; UTS71419SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419SX
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Resistant against gasoline
Test current
5 A UL 4 A CSA 5 A IEC
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
