Eaton UTS71419SY Connector - IP68/IP69K Waterproof
Part Number: UTS71419SY
Quick Summary
The UTS71419SY plastic waterproof IP68/69K receptacle provides rugged, reliable connectors for harsh industrial environments. Users often struggle with ingress, corrosion, and difficult field installation in mobile machinery. It carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliances to support safety, electrical integrity, and global approvals. With a 19-contact layout, bayonet coupling, and a lightweight polyamide shell, it delivers cost-effective, compliant performance for automation, robotics, and equipment in outdoor settings. Designed for quick field assembly and reliable sealing, it minimizes downtime and simplifies spare-part planning for OEMs and integrators.
Product Information
Extended Description

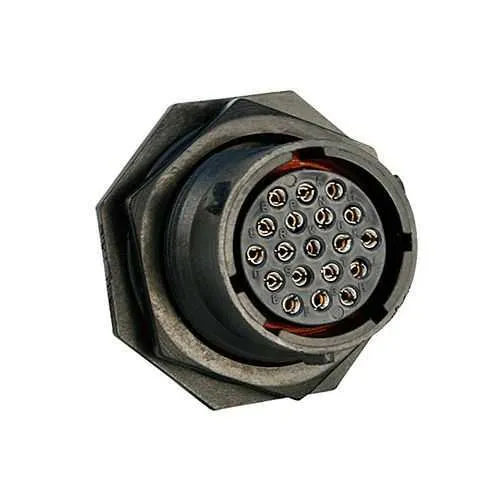

UTS71419SY Eaton: Plastic jam nut receptacle, without backshell, for 19 female contacts, IP68/69K, keying Y; UTS71419SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71419SY
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.7 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS
Environmental resistance
Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
5 A UL 4 A CSA 5 A IEC
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K sealing plus jam-nut receptacle design ensures ingress protection in high-pressure washdown and dusty environments. Business Impact: Reduces field downtime and maintenance costs by maintaining signal integrity in wet or dusty conditions. Application: Mobile machinery, off-highway equipment, and outdoor automation panels. Feature: 19-position layout and bayonet coupling (1/3) provide secure, compact terminations and fast connect/disconnect. Business Impact: Improves installation speed and reduces enclosure size, enabling more reliable multi-pin wiring in tight spaces. Application: Control panels and harnesses in compact automation cabinets. Feature: UL 1977, CSA-C22.2 No.182.3, IEC 61984 compliances ensure electrical safety and interoperability across regions. Business Impact: Facilitates cross-border deployments and simplifies procurement for global projects. Application: OEMs delivering worldwide automation solutions. Feature: 5 A current rating with 250 mating cycles guarantees durable, repeated connections. Business Impact: Extends service life and lowers replacement costs in dynamic systems. Application: Robotic actuators and sensor networks in manufacturing cells. Feature: Operating temperature range -40 °C to 105 °C and UV/mineral oil resistance ensure performance in outdoor and harsh environments. Business Impact: Maintains reliability in temperature swings and exposure to challenging fluids. Application: Outdoor machinery, mobile equipment, and heavy equipment enclosures. Feature: Insert material is polyamide, shell is plastic, and aluminium nut adds robustness; shell size 14 and 14-contact footprint support scalable harness designs. Business Impact: Simplifies integration with existing Souriau UTS ecosystems and reduces custom tooling. Application: Upgrades to existing UTS-based systems and new installations in industrial plants.
