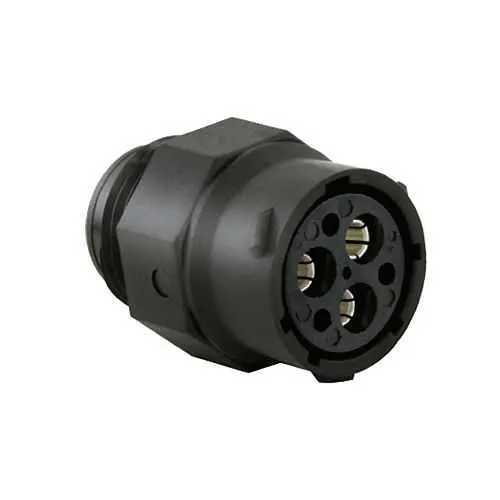

Eaton UTS7142G1SNPT Receptacle - IP68/69K Waterproof
Part Number: UTS7142G1SNPT
Quick Summary
The Eaton UTS7142G1SNPT Receptacle is a plastic waterproof connector designed for rugged outdoor equipment. Maintenance downtime and seal failures are costly in harsh environments, so a reliable IP68/69K solution helps keep systems running. This design carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, ensuring safety, interconnect efficiency, and compliance. With 3 female contacts in a compact 2G1 layout and crimped connections, it simplifies field installations and long-term service. Designed for industrial machinery and demanding applications, this connector supports RoHS and REACH compliance, delivering durable performance that reduces maintenance and total cost of ownership.
Product Information
Extended Description
UTS7142G1SNPT Eaton: Plastic threaded receptacle, without backshell, for 3 female contacts, IP68/69K; UTS7142G1SNPT
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7142G1SNPT
Product Length/Depth
35.3 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
10.7 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
44 A UL 40 A IEC
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Test current
44 A UL 30 A CSA 40 A IEC
Test voltage
300 V IEC 600 V CSA 600 V UL
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
3
Number of cavity #8 power
3
Salt spray
500 hour
Feature: IP68/69K protection for water and dust ingress. Benefit: Protects critical connections in wet, dusty, or immersion-prone environments, reducing failure rates and maintenance cycles in outdoor, marine, or heavy industrial settings. Application: Outdoor machinery, mining equipment, and agricultural installations. Feature: 3-contact, 2G1 layout with crimp contact type. Benefit: Streamlined wiring harness design and reliable electrical performance with consistent mating/insertion. Application: Simple, fast installation in compact electrical panels. Feature: Threaded receptacle with 1/3 bayonet coupling. Benefit: Secure, vibration-resistant mating with easy field replacement, minimizing downtime. Application: Mobile equipment and industrial automation that experience vibration. Feature: Operating temperature range -40 °C to 105 °C. Benefit: Operational reliability across cold starts and high-heat environments, extending service life. Application: Environments with extreme temperatures. Feature: 250 mating cycles and 3 contacts. Benefit: Predictable lifecycle cost and durable service in maintenance-heavy systems. Application: Reusable, high-cycle connections in control cabinets. Feature: RoHS, REACH, UL94 V0 flammability and fire & smoke ratings. Benefit: Compliance assurance across global supply chains and safer product integration. Application: Regulated industries requiring strict material and safety standards.
Get a Quick Quote for a Eaton UTS7142G1SNPT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7142G1SNPT?
Enquire Now
FAQs
The UTS7142G1SNPT uses a threaded receptacle with a 1/3 bayonet coupling, designed for Crimp contact and a 2G1 layout. It is compatible with standard Souriau UTS series accessories and requires no backshell option, simplifying mounting in tight spaces while delivering robust environmental protection up to IP68.
Key specs include a 44 A current rating (UL) and 40 A (IEC), 300 V (IEC) and 600 V (UL/CSA) test voltages, three contacts, and a mating cycle life of 250. The operating temperature range is -40 °C to 105 °C, suitable for harsh industrial environments.
Yes. The connector is IP68/IP69K rated, providing excellent waterproof protection for outdoor, marine, and wash-down environments. Its polyamide shell and sealed contacts maintain performance and prevent ingress during periods of high moisture or exposure to contaminants.
The UTS7142G1SNPT complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, validating interconnect safety, electrical integrity, and regulatory compliance across North American and international markets.
With 250 mating cycles and a robust IP68/69K seal, the UTS7142G1SNPT is built for high-cycle reliability in challenging environments. Regular inspection of the crimp contacts and seals, along with keeping the connector clean from contaminants, helps sustain performance and reduces unplanned downtime.
