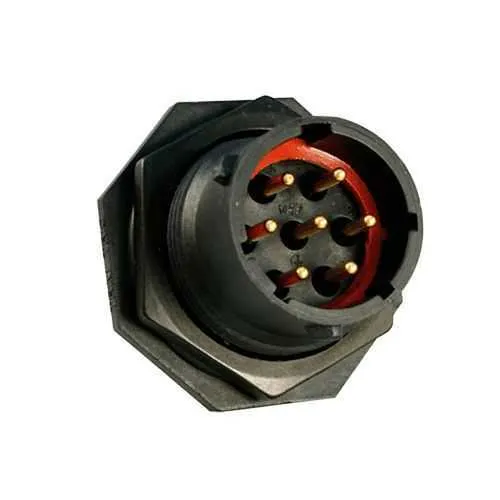

Eaton UTS7147PSCR Plastic Waterproof Receptacle IP68/69K
Part Number: UTS7147PSCR
Quick Summary
The Eaton Souriau UTS7147PSCR is a plastic waterproof IP68/69k receptacle designed for rugged automation and harsh environments. It delivers reliable connectivity where moisture and dust are present, reducing downtime and maintenance costs. Engineers often struggle with ingress protection, vibration, and difficult field replacements; this 7‑position jam‑nut receptacle provides robust sealing, gold-plated contacts, and a compact 52.5 mm depth to fit tight panels. Compliant with IEC 61984 and UL 1977, plus RoHS, it also aligns with CSA and UL reference standards for global deployments. By combining IP68/69K sealing, rugged materials, and industry certifications, it enables faster deployment, longer service life, and safer, code-compliant installations in outdoor, offshore, and industrial settings.
Product Information
Extended Description
UTS7147PSCR Eaton: Plastic jam nut receptacle,without backshell, for 7 male screw contacts, IP68/69K; UTS7147PSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7147PSCR
Product Length/Depth
52.5 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
10.1 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) Layout with ground cavity First mate last break capability
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath
Test current
10 A UL 16 A IEC 7 A CSA
Test voltage
500 V CSA 300 V IEC 500 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K waterproof sealing protects against immersion and dust ingress, reducing corrosion and downtime. Business Impact: Extends service life in outdoor, offshore, and mining environments, lowering maintenance costs. Application: Ideal for rugged automation equipment that operates in harsh weather or spray zones. Feature: 7-position jam-nut receptacle with ground cavity layout option and 1/3 bayonet coupling. Business Impact: Simplifies wiring, grounding, and quick mating in tight panel spaces, accelerating installation. Application: Control panels and field devices in harsh environments benefit from faster, reliable assemblies. Feature: Gold-plated screw contacts with 7 contacts and a 16 A IEC/10 A UL current rating. Business Impact: Ensures high signal integrity and robust power delivery while meeting international standards. Application: Heavy automation, servo drives, and multi-signal harnesses require dependable contact performance. Feature: Insert material polyamide, shell plastic, and aluminium nut with 52.5 mm length and compact footprint. Business Impact: Lightweight, corrosion-resistant construction reduces weight on moving equipment and simplifies mounting. Application: Space-constrained enclosures in mobile machinery and outdoor installations. Feature: Operating temperature range -40 °C to 105 °C and 250 mating cycles. Business Impact: Resilient performance under extreme temperatures with predictable lifecycle costs. Application: Automotive, mining, and process automation where frequent mating cycles occur. Feature: Optional last mate first break capability and standard ground cavity layout. Business Impact: Streamlines maintenance and reduces downtime during connector disconnections. Application: Field service and automated production lines where quick cycle changes are common.
