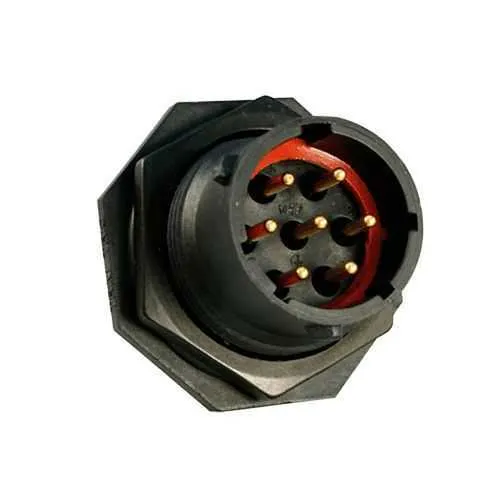

Eaton UTS7147PSEK9 Receptacle - IP68/69K Waterproof
Part Number: UTS7147PSEK9
Quick Summary
Eaton UTS7147PSEK9 Receptacle is a waterproof PCB connector for rugged industrial equipment. Engineers frequently confront moisture ingress and unreliable mating at cable-to-board interfaces in harsh environments. With IP68 protection and approvals to IEC 61984, UL 1977, and CSA, this receptacle meets demanding industry standards. Its compact 7-pin layout, jam-nut mounting, and 1/3 bayonet coupling simplify installation while reducing space and assembly time. For design teams targeting resilient automation interfaces, the UTS7147PSEK9 delivers dependable performance, easy maintenance, and lower lifecycle costs.
Product Information
Extended Description
UTS7147PSEK9 Eaton: Plastic jam nut receptacle,without backshell, for 7 male PCB contacts, IP68/69K; UTS7147PSEK9
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7147PSEK9
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
10.1 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 7 A CSA 16 A IEC
Test voltage
500 V CSA 300 V IEC 500 V UL
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68 protection provides robust ingress resistance in wet, dusty environments. Business Impact: Reduces downtime and maintenance costs by ensuring stable connections in harsh conditions. Application: Ideal for mobile equipment and outdoor automation where exposure to moisture and dust is constant. Feature: 7-pin PCB contact arrangement with a jam-nut receptacle design. Business Impact: Streamlines panel mounting and simplifies field wiring, freeing up enclosure space. Application: Suitable for compact control panels requiring reliable 7-cavity connections. Feature: 1/3 bayonet coupling and last/first mate options (optional). Business Impact: Accelerates mating/demating cycles, improving installation efficiency and serviceability. Application: Quick field replacements in demanding environments. Feature: Operating temperature range from -40 °C to 105 °C and UL94 V0 flammability. Business Impact: Maintains performance in extreme temperatures while meeting safety standards. Application: Equipment exposed to sun, heat, or cold in industrial settings. Feature: Material mix of polyamide insert and plastic shell with aluminium nut. Business Impact: Delivers durable, corrosion-resistant construction that withstands vibration and chemical exposure. Application: Panel-mounted connectors in machinery and automation systems. Feature: RoHS compliance and IEC/UL/CSA certifications. Business Impact: Ensures regulatory compliance and broad market access. Application: Design-ready for global deployments with standard approvals.
Get a Quick Quote for a Eaton UTS7147PSEK9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7147PSEK9?
Enquire Now
FAQs
The UTS7147PSEK9 is a jam-nut receptacle designed for PCB mounting with a 7-contact layout. It uses a 1/3 bayonet coupling and a compact 33.9 mm length with 34.9 mm height and width, enabling straightforward panel installation without a backshell. Ensure panel thickness and mating footprint align with the 14 shell size and 7-position cavity arrangement for reliable engagement.
This connector provides a current rating of 16 A IEC and 10 A UL/7 A CSA with test voltages of 500 V CSA/UL and 300 V IEC. It supports 7 pins (7 cavities) and is rated for mating cycles up to 250. These specs ensure robust power transfer and reliable signal integrity across typical industrial automation applications.
Yes. The IP68 rating (and IP69K capability implied by the series) provides superior ingress protection against water and dust, while the aluminium nut and plastic jam-nut receptacle design offer strong mechanical stability. The operating temperature range from -40 °C to 105 °C and UV resistance further support performance in demanding environments with continuous vibration or outdoor exposure.
The UTS7147PSEK9 complies with UL 1977, IEC 61984, and CSA standards, with RoHS exemption 6.c. It is designed to meet fire/smoke standards per UL94 V0 and is suitable for global product qualification. This mix of certifications aids compliance in regulated markets and simplifies supplier qualification for rugged automation projects.
By delivering reliable IP68/IP69K sealing, 250 mating cycles, and a compact 7-pin layout, the connector reduces field maintenance, minimizes downtime, and lowers replacement costs. Its durable insert and housing materials resist oils, chemicals, and UV exposure, enhancing longevity in harsh environments and lowering lifecycle costs for industrial automation projects.
