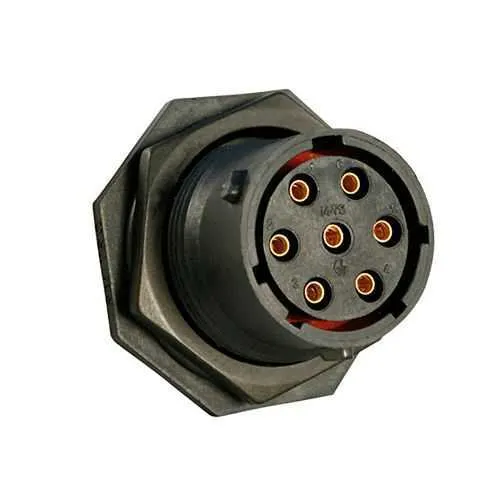

Eaton UTS7147SSCR Plastic Connector - IP68/69K
Part Number: UTS7147SSCR
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69K connector delivers reliable sealing for rugged electrical connections in harsh environments. Engineers often grapple with moisture ingress, corrosion, and costly downtime, and this solution mitigates those risks through proven IP68/69K protection and durable contact performance. It carries UL 1977, IEC 61984 and CSA-C22.2 No.182.3 certifications, alongside RoHS exemption 6.c, underscoring compliance for industrial control and automation projects. Designed as a 7-position jam nut receptacle with gold-plated contacts, it combines a compact panel footprint with robust vibrational resistance and easy maintenance. For teams pursuing faster assembly and lower life-cycle costs, this connector offers predictable performance across -40 to 105 °C and up to 250 mating cycles.
Product Information
Extended Description
UTS7147SSCR Eaton: Plastic jam nut receptacle,without backshell, for 7 female screw contacts, IP68/69K; UTS7147SSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7147SSCR
Product Length/Depth
44.4 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
10.3 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against acid bath Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
500 V UL 300 V IEC 500 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Nut material
Aluminium
Salt spray
500 hour
