Eaton UTS7148P Plastic Waterproof Connector - IP68/69K
Part Number: UTS7148P
Quick Summary
The Eaton UTS7148P plastic waterproof IP68/69K connector provides rugged, high-reliability signal and power coupling for harsh industrial environments. Engineers struggle with seal failures in moist, dust-laden, vibration-prone settings, leading to downtime, expensive repairs, and unpredictable production schedules. UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications provide peer-reviewed reliability for control panels and field wiring, ensuring safety and compliance. IP68/69K sealing ensures ingress protection in washdown and outdoor installations, while RoHS/REACH compliance supports sustainable manufacturing. Designed to withstand repeated mating and field service, it supports reliable performance in automation panels, mobile equipment, and outdoor installations.
Product Information
Extended Description

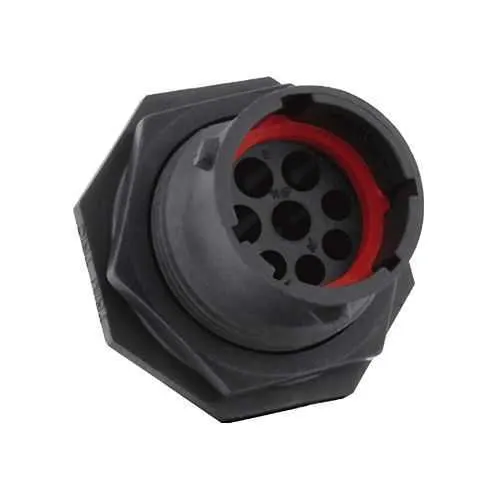

UTS7148P Eaton: Plastic jam nut receptacle, without backshell, for 8 male contacts, IP68/69K; UTS7148P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7148P
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
9.1 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
25 A UL 17 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS REACH
Environmental resistance
Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline
Test current
17 A IEC 25 A UL 17 A CSA
Test voltage
230 V IEC 250 V UL 230 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
8
Number of cavity #12
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K sealing and environmental resistance → Business Impact: Maintains performance in washdowns, exposure to dust, chemicals, and UV, reducing unplanned downtime and maintenance costs. Application: Food processing lines, outdoor automation, and marine equipment benefit from extended service life without frequent seal replacements. Feature: 8-pin crimp receptacle with jam-nut mounting and 1/3 Bayonet coupling → Business Impact: Fast, secure mating with tool-free or minimal torque, enabling quicker panel wiring and reduced installation time. Application: Robotic cells, conveyors, and CNC machinery benefit from simplified field assembly and reliable channel integrity. Feature: 25 A (UL), 17 A (IEC) current rating; 230 V IEC, 250 V UL/CSA test voltage; 250 mating cycles → Business Impact: Consistent electrical performance across standards and long service life, lowering rework and replacement costs. Application: Industrial drives, sensors, and power distribution panels require robust duty cycles. Feature: Polyamide insert, plastic shell, aluminium jam-nut → Business Impact: Lightweight, chemical and UV resistance with durable mounting hardware, enabling compact, corrosion-resistant assemblies. Application: Outdoor machinery, mobile equipment, and harsh environment installations benefit from high strength-to-weight ratio. Feature: Operating range -40 to 105 °C; Salt spray 500 h; Flammability UL94 V0; RoHS/REACH → Business Impact: Wide operating envelope and environmental compliance support global deployments with fewer component substitutions. Application: Petrochemical, water/wastewater, and automation projects in extreme climates rely on proven resilience. Feature: 8 contacts, #12 cavities 4 and #16 cavities 4; Nit orientation N; Receptacle type Jam Nut Receptacle; Not delivered contact delivery → Business Impact: Clear wiring plan and order clarity reduce mis-matches and on-site delays. Application: Panel builders and system integrators benefit from defined configurations and predictable sourcing.
Get a Quick Quote for a Eaton UTS7148P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7148P?
Enquire Now
FAQs
The UTS7148P is a jam-nut receptacle with 8 pins and a 1/3 bayonet coupling. It mounts directly to panels using the jam nut, without a backshell. Orientation is N, and the design supports quick, secure field assembly with minimal tools, reducing installation time and space requirements on crowded control panels.
The connector is rated up to 25 A (UL) and 17 A (IEC) with a test voltage of 230 V IEC and 230–250 V variants for other standards. It supports up to 250 mating cycles, with an operating temperature range of -40 to 105 °C, ensuring stable performance across typical industrial environments.
Yes. It features IP68 sealing for excellent ingress protection against water and dust, along with UV resistance and 500-hour salt spray resistance. These qualities make it well-suited for outdoor installations, marine or vehicle applications, and environments with frequent washdowns.
This connector complies with UL 1977, CSA-C22.2 No. 182.3, and IEC 61984. It also adheres to RoHS and REACH requirements and offers UL94 V0 flammability with I2F3 fire and smoke ratings, supporting safe, compliant deployments in regulated industries.
With a lightweight plastic shell, aluminium nut, and a durable polyamide insert, the assembly is quick and resistant to environmental stress. The 250 mating cycles and proven IP68/69K sealing reduce maintenance, unexpected downtime, and total cost of ownership for automation and harsh-environment machinery.
