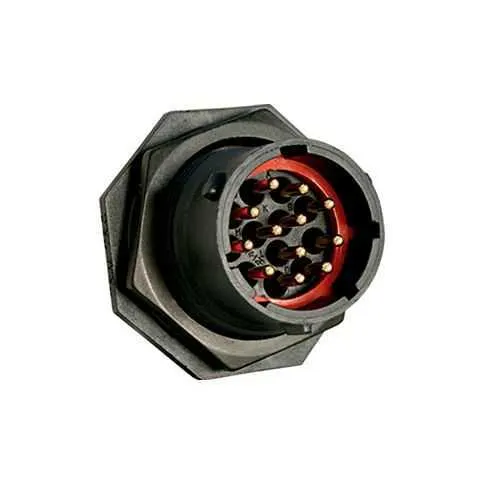

Eaton UTS71492P IP68/69K Plastic Connector - IP68/69K
Part Number: UTS71492P
Quick Summary
The Eaton UTS71492P plastic waterproof connector provides reliable 12-pin connectivity for harsh industrial environments, enabling dependable machine interfacing in outdoor, wet, or dirty conditions. Moisture ingress, corrosion, and damaged seals drive unplanned downtime, so end users need a rugged, compliant solution that installs quickly and resists harsh chemicals. This product carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 compliance, reinforcing safety, cross‑regional interoperability, and streamlined procurement for global projects. IP68/69K sealing, jam-nut receptacle design, and a compact footprint help shorten installation time while delivering long-term reliability and reduced maintenance costs.
Product Information
Extended Description
UTS71492P Eaton: Plastic jam nut receptacle, without backshell, for 12 male contacts, IP68/69K; UTS71492P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71492P
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.8 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
7 A CSA 10 A UL 10 A IEC
Test voltage
600 V CSA 600 V UL 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
The UTS71492P leverages a robust 12-position jam-nut receptacle with a 1/3 bayonet coupling to ensure secure mating in demanding environments, reducing the risk of accidental disconnects in vibration-prone applications. This translates to measurable uptime gains for mining equipment, outdoor automation panels, and industrial machinery, where field servicing and water exposure are common. The plastic shell houses a polyamide insert and aluminium nut, delivering a lightweight yet durable solution that supports up to 250 mating cycles while maintaining IP68 protection, helping owners plan maintenance cycles with confidence. Electrical performance is consistent across regions, offering a 10 A rating and 600 V test voltage, which supports compliant operation in mixed-supply installations. The design also resists UV exposure, oils, and chemicals, lowering long-term replacement costs and boosting total cost of ownership. Compatibility with standard crimp contacts and the availability of accessories (backshells) separately simplifies installation and reduces project risk. In practice, engineers gain speed during wiring, improved reliability in harsh environments, and a shoestring approach to spares inventory thanks to uniform connector families across a global fleet.
Get a Quick Quote for a Eaton UTS71492P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71492P?
Enquire Now
FAQs
The UTS71492P is a 12-position male crimp contact jam-nut receptacle with a 1/3 bayonet coupling in shell size 14 and an N orientation. It ships without a backshell or contact delivery, so you’ll need the corresponding Eaton Souriau backshell accessory and crimp contacts ordered separately. It mates with the matching UTS plug housing and supports up to 250 mating cycles, enabling reliable field connections.
The UTS71492P features IP68 sealing and IP69K capability, operating from -40 to 105 C. It is UV resistant, resistant to gasoline and oils, and withstands vibrations from 10 to 2000 Hz. With 12 positions and 10 A current rating, it supports safe operation in wet, dusty, and chemically challenging environments, reducing maintenance frequency and downtime.
This connector complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, providing safety certification, cross-border interoperability, and procurement consistency for global projects. For detailed compliance scope and testing procedures, contact Eaton’s technical team, as some details may vary by region or application.
Install with the jam-nut receptacle in the intended orientation (N) and secure it with the appropriate backshell accessory ordered separately. Use standard crimp contacts and ensure proper seating to avoid loose connections. Regular inspection should focus on seal integrity and mating connections, given the 12-contact configuration and the environmental demands of outdoor and industrial installations.
Expect reduced downtime due to superior ingress protection (IP68) and high environmental resistance (UV, oils, chemicals). The 12-pin, 10 A design supports reliable long-term operation with up to 250 mating cycles, lowering replacement frequency. Global compliance simplifies procurement and minimizes compliance risk across multinational deployments, contributing to lower total cost of ownership.
