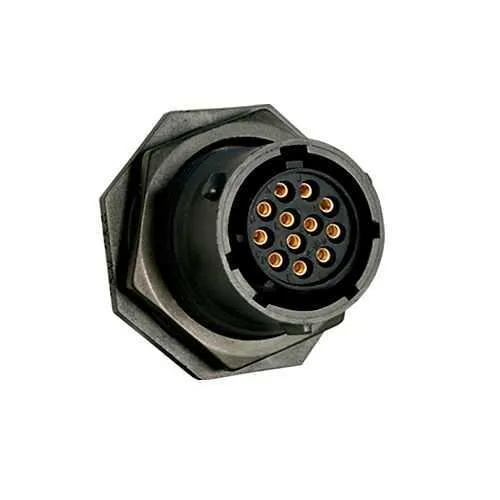

Eaton UTS71492S Receptacle - IP68/69k Waterproof
Part Number: UTS71492S
Quick Summary
The Eaton Souriau UTS71492S is a jam-nut receptacle with 12 female contacts that delivers IP68/69k waterproof sealing for rugged industrial equipment. Engineers face ingress, vibration, and maintenance downtime in harsh environments, and robust connectors help mitigate these challenges. This product complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, supporting certified performance across global installations. With a compact 33.9 mm length and a 10 A current rating, it enables reliable, cost-efficient harnessing and panel integration for controls, automation, and machinery where space and reliability matter. The combination of durable materials and long service life helps modern factories reduce maintenance cycles while maintaining high availability for critical applications.
Product Information
Extended Description
UTS71492S Eaton: Plastic jam nut receptacle, without backshell, for 12 female contacts, IP68/69K; UTS71492S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71492S
Product Length/Depth
33.9 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
8.9 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Environmental conditions
Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
10 A UL 10 A IEC 7 A CSA
Test voltage
600 V UL 63 V IEC 600 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/IP69k sealing delivers reliable ingress protection, reducing field failures and downtime in outdoor or wash-down environments, enabling longer service intervals for equipment like pumps, conveyors, and mobile machines. This translates to lower maintenance costs and higher uptime in process and material-handling lines. Application: heavy-duty industrial automation, mining equipment, and outdoor machinery. Feature → Business Impact → Application: 12-contact, solderless/crimpable receptacle arrangement supports flexible harness design with high contact density, improving wiring efficiency and space utilization in control panels and connector assemblies. Application: machine builds and retrofits needing compact, scalable I/O interfaces. Feature → Business Impact → Application: 1/3 bayonet coupling provides quick, secure mating with repeatable performance, reducing installation time and dependence on skilled labor during panel wiring and field service. Application: robotic cells and packaging lines requiring rapid field maintenance. Feature → Business Impact → Application: UL/IEC/CSA compliance and flame rating (UL94 V0) enhance safety and regulatory confidence, easing certification efforts and warehouse acceptance for global deployments. Application: food, beverage, and pharmaceutical equipment where strict material and fire-safety standards apply. Feature → Business Impact → Application: UV and chemical resistance with 5-year natural-environment durability minimizes degradation in outdoor or harsh industrial settings, extending product life and total cost of ownership. Application: outdoor enclosures, agricultural machinery, and marine-leaning installations. Feature → Business Impact → Application: rated current of 10 A and test current of 10 A/IEC plus 600 V UL CSA compatibility supports reliable power transmission for standard control circuits and sensor networks. Application: PLC I/O, motor-control fan assemblies, and field-power distribution.
Get a Quick Quote for a Eaton UTS71492S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71492S?
Enquire Now
FAQs
Install the jam-nut receptacle from the panel side, align in N orientation, crimp 12 female contacts to the mating harness, and secure with the jam nut. The 1/3 bayonet coupling allows quick mating and reliable sealing without a backshell, simplifying field assemblies and reducing setup time.
Current rating is 10 A (IEC and UL), with a test current of 10 A (UL/IEC) and test voltage of 600 V (UL/CSA). This makes it suitable for standard control circuits and power pathways in rugged equipment while maintaining a healthy safety margin.
Yes. It carries IP68 sealing and is designed for UV resistance and chemical exposure, with materials selected for long-term durability in outdoor and wash-down environments, reducing ingress-related failures over the equipment lifecycle.
The connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, aligning with global safety and performance requirements for industrial connectors and facilitating cross-border deployments.
With 250 mating cycles and robust IP68/69k sealing, the UTS71492S reduces maintenance downtime and replacement costs. Its durable construction and fire/UV resistance help extend service life, lowering total cost of ownership in high-use automation environments.
