Eaton UTS71823P Receptacle - IP68/69K Waterproof
Part Number: UTS71823P
Quick Summary
Eaton UTS71823P Receptacle is a waterproof 23-position connector designed for rugged industrial and outdoor equipment. Field technicians often contend with exposed connections that corrode, misalign, or fail in harsh environments; this receptacle addresses those challenges with robust sealing and durable materials. The solution aligns with critical certifications and standards, including UL 1977, CSA-C22.2 No.182.3, and IEC 61984, providing tested reliability across global applications. Its IP68/69K protection, long-term environmental resistance, and compatibility with Souriau UTS accessories support uptime, safety, and compliance. By delivering consistent mating integrity and quick field installation, it reduces downtime and spares replacement costs while enabling scalable panel density in control and automation nodes.
Product Information
Extended Description

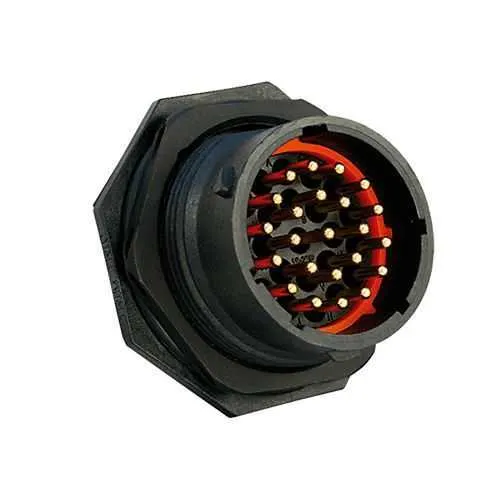

UTS71823P Eaton: Plastic jam nut receptacle, without backshell, for 23 male contacts, IP68/69K; UTS71823P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71823P
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.2 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 9 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
7 A CSA 10 A UL 9 A IEC
Test voltage
500 V UL 500 V CSA 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
23
Number of cavity #16
23
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application. The 23-pin jam-nut receptacle delivers a compact, high-density interface that resists dust, water, and oil ingress for dependable performance in harsh environments, reducing field maintenance and warranty claims. This translates to lower total cost of ownership and fewer downtime events in outdoor equipment and heavy machinery. Feature → 1/3 bayonet coupling enables fast, secure mating in constrained spaces, improving installation speed and repeatability on production lines and mobile equipment. Application-ready benefits include quick field swaps in service trailers and remote sites without heavy tooling. Feature → Polyamide insert and plastic shell provide chemical resistance and light weight, lowering handling risk and supporting EMI/RFI considerations in control panels. Feature → Operating temperature range from −40 °C to 105 °C supports equipment lifecycle in extreme climates, reducing the need for alternative parts and preserving component integrity. Feature → 250 mating cycles demonstrate durability in frequent connect/disconnect scenarios common in automation modules, test rigs, and mobile machinery, delivering predictable performance over the product’s service life. Feature → 23 contacts with crimp-type contacts enable reliable, mass-terminated wiring harnessing for complex assemblies, supporting faster harness fabrication and easier replacement. Feature → Aluminum nut and jam-nut receptacle design deliver stable fastening and ease of retrofit in existing Souriau UTS deployments, minimizing retrofit risk and ensuring backward compatibility in expanding automation architectures. The combination of IP68 protection, UL/IEC/CSA compliance, and 10 A current rating supports broader adoption in rugged control cabinets, outdoor enclosures, and vehicle-mounted systems while maintaining vendor-standardized accessories and serviceability. This translates to measurable efficiency gains, improved regulatory alignment, and predictable lifecycle costs for engineers and procurement teams.
Get a Quick Quote for a Eaton UTS71823P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71823P?
Enquire Now
FAQs
To install the UTS71823P, insert the receptacle through the panel cutout with the jam-nut threaded on the backside. Tighten the jam-nut securely to seal the panel face and ensure proper alignment. Use the 1/3 bayonet coupling to mate with the corresponding plug, and verify the crimp contacts are fully engaged. Confirm IP68/69K integrity after installation by performing a brief immersion or water spray test per your testing procedure.
Yes. The UTS71823P is rated IP68, operates from −40 °C to 105 °C, and is designed for long-term exposure to challenging conditions. Its plastic shell and polyamide insert provide chemical and UV resistance, while its 23-contact configuration supports complex outdoor control assemblies and field-replaceable wiring harnesses.
The connector is rated for 10 A per UL, 9 A per IEC, and 7 A per CSA with a test voltage of up to 500 V (UL/CSA) and 63 V (IEC). It supports 23 contacts, crimp delivery, and 250 mating cycles, enabling reliable performance in routine connect-disconnect scenarios typical of automation and service environments.
The UTS71823P references UL 1977, CSA-C22.2 No.182.3, and IEC 61984. These certifications validate safety, compatibility with industrial wiring practices, and compliance across North American and international markets, helping you meet procurement policies and project specifications without additional certification testing.
This receptacle is designed for compatibility with Eaton Souriau UTS series accessories and standard crimp contacts. While the connector accessory option is not delivered with the unit, ordering separately ensures you can tailor backshells, seals, or mounting hardware to your installation. Regular inspection and sealing checks help maintain IP68 integrity and prolong service life.
