Eaton UTS71823PX Connector - IP68/69K Waterproof
Part Number: UTS71823PX
Quick Summary
UTS71823PX is a plastic waterproof IP68/69k connector for rugged industrial environments. Engineers often face seal failures and unreliable connections in washdown or outdoor equipment; this solution mitigates those risks with a robust polyamide body and sealed interface. Compliance matters are clear here, with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 guidance supporting safe, certified performance in electrical assemblies. In addition to strong protection ratings, the design emphasizes long-term reliability and ease of installation, helping procurement cut risk and maintenance costs while ensuring consistent performance across demanding applications.
Product Information
Extended Description

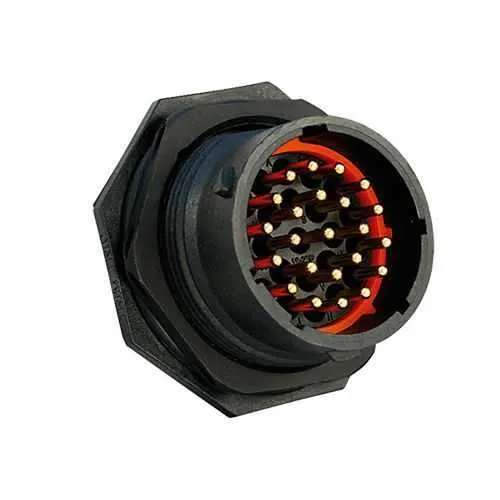

UTS71823PX Eaton: Plastic jam nut receptacle, without backshell, for 23 male contacts, IP68/69K, keying X; UTS71823PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71823PX
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.2 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A CSA 10 A UL 9 A IEC
Test voltage
500 V CSA 500 V UL 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
23
Number of cavity #16
23
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K sealing provides ingress protection in harsh washdown and outdoor environments. Business Impact: Reduces downtime from leaks and corrosion, extending equipment life and lowering maintenance costs. Application: Food, beverage, outdoor machinery, and mobile equipment demanding reliable sealing. Feature: 23-position jam-nut receptacle with 1/3 Bayonet coupling. Business Impact: Simplifies field connections with secure mating and quick release, speeding service and reducing installation errors. Application: Heavy machinery harnesses and control panels that require rugged, high-port density connectivity. Feature: 23 crimp contact layout with aluminium nut and polyamide insert. Business Impact: Ensures durable electrical paths with resistance to vibration and thermal cycling, improving signal integrity. Application: Industrial automation and robotics where high contact count is needed. Feature: Operating range -40 °C to 105 °C and UV resistance. Business Impact: Allows use in extreme temperatures and exposed environments without material degradation, improving uptime. Application: Outdoor installations, mining, and offshore equipment. Feature: 9 A IEC / 10 A UL current rating and 250 mating cycles. Business Impact: Delivers reliable power handling with predictable lifecycle, reducing rework and spare parts. Application: Control modules and power distribution in demanding machinery. Feature: Optional First Mate Last Break / Last Mate First Break capabilities. Business Impact: Flexible installation and maintenance sequencing, minimizing downtime during wiring and testing. Application: Field service and modular automation setups where quick disconnection is beneficial.
