Eaton UTS71823PZ Connector - IP68/69K Waterproof
Part Number: UTS71823PZ
Quick Summary
Eaton UTS71823PZ connector provides a rugged, IP68/69K plastic waterproof receptacle for harsh industrial and outdoor equipment. Engineers often struggle with moisture ingress, vibration, and unreliable connections that drive downtime and maintenance costs. This design delivers robust sealing and 23 electrical paths to support complex control signals and power in demanding environments. With UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications, it aligns with key safety and regulatory standards. The combination of a jam-nut receptacle, optional last-mate-first-break features, and a compact polyamide shell enables flexible installation, attractive total cost of ownership, and reliable performance across mobile machinery, conveyors, and outdoor installations.
Product Information
Extended Description

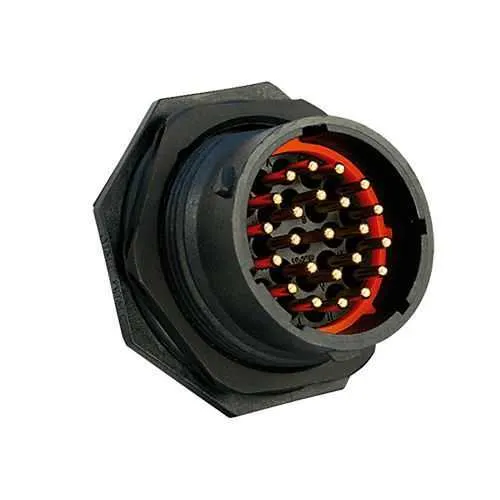

UTS71823PZ Eaton: Plastic jam nut receptacle, without backshell, for 23 male contacts, IP68/69K, keying Z; UTS71823PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71823PZ
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.2 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire & Smoke RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
9 A IEC 7 A CSA 10 A UL
Test voltage
500 V UL 500 V CSA 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
23
Number of cavity #16
23
Nut material
Aluminium
Salt spray
500 hour
Feature is IP68/69K waterproof rating providing superior protection against water, dust and immersion; Business Impact is dramatically reduces risk of moisture-related failures and downtime; Application is rain-exposed conveyors and outdoor industrial machines. Feature is 23 contact positions with a 9 A IEC / 10 A UL current rating; Business Impact is supports complex control and power paths while maintaining regulatory compliance; Application is mobile equipment and automated systems that require high-density signaling. Feature is jam-nut receptacle with Z keying and 1/3 bayonet coupling; Business Impact is fast, secure mating with easy field maintenance; Application is rugged field installations where quick service matters. Feature is polyamide insert with aluminium nut for durability; Business Impact is corrosion resistance and long service life in challenging environments; Application is heavy-duty automation and outdoor enclosures. Feature is rated for wide operating temperatures from -40 °C to 105 °C and UV resistance; Business Impact is reliable performance in extreme climates; Application is outdoor machinery and solar/industrial installations.
