Eaton UTS71823S Receptacle - IP68/69K Plastic Waterproof
Part Number: UTS71823S
Quick Summary
The Eaton UTS71823S Receptacle is a rugged IP68/69K plastic waterproof connector designed for harsh industrial environments. Moisture ingress, dust, and vibration challenge uptime, but this design delivers reliable sealing and mating integrity across demanding operating cycles. It complies with IEC 61984, UL 1977, and CSA standards, with IP68 sealing, UL94 V0 flame rating, and RoHS/REACH compliance to support safe, compliant automation deployments. For system integrators, its jam-nut receptacle format, 1/3 bayonet coupling, and 23-position layout simplify installation and future-proofing in control panels and moving equipment. Its compact footprint and light weight help reduce enclosure size and total cost of ownership while meeting strict safety and environmental requirements.
Product Information
Extended Description

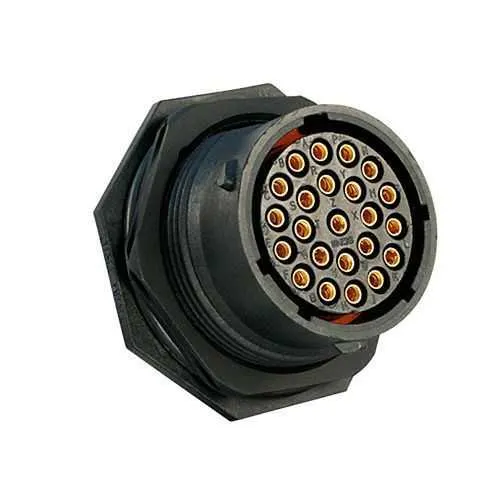

UTS71823S Eaton: Plastic jam nut receptacle, without backshell, for 23 female contacts, IP68/69K; UTS71823S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71823S
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke REACH RoHS
Environmental resistance
Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against mineral oil Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
9 A IEC 7 A CSA 10 A UL
Test voltage
500 V UL 500 V CSA 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
23
Number of cavity #16
23
Nut material
Aluminium
Salt spray
500 hour
23-position jam nut receptacle with 1/3 bayonet coupling provides dense connectivity in compact enclosures, reducing panel footprint while ensuring secure mating. This design enables clean cable harnesses and faster field assembly in automation cabinets, robotics cells, and mobile machinery. The 23 cavities support crimp contacts with reliable electrical performance, supporting 9 A IEC and 10 A UL current ratings for standard automation loads, helping avoid overdesign and cut installation costs. Operating from -40 °C to 105 °C, the connector maintains signal integrity across harsh climates, improving uptime in outdoor equipment, mines, and offshore environments. The IP68 sealing and UV-resistant plastic shell protect against water ingress, dust, and UV exposure, lowering maintenance and downtime in wash-down and high-dust settings. With 250 mating cycles, the unit offers a durable lifecycle that reduces replacement frequency and total cost of ownership in high-change environments. The polyamide insert and aluminum nut provide robust mechanical integrity, while the jam nut receptacle mounting simplifies installation in tight spaces, enabling quicker panel wiring and serviceability across industrial control systems.
