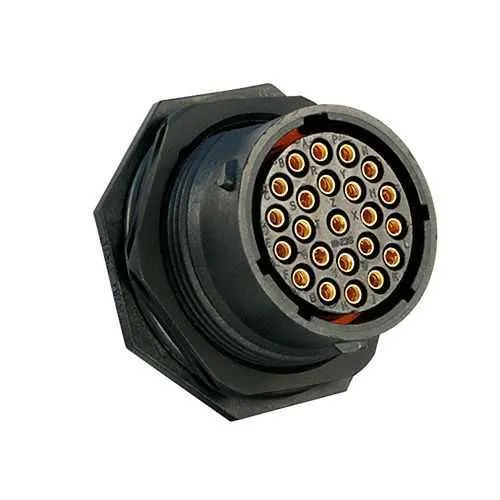

Eaton UTS71823SZ IP68/69K Connector 23-way for harsh env.
Part Number: UTS71823SZ
Quick Summary
UTS71823SZ is a 23-contact plastic waterproof IP68/69K connector designed for rugged industrial harnesses. Engineers often face moisture ingress, dust contamination, and degraded seals that cause intermittent failures and downtime. This solution aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, providing a solid regulatory basis for automation and machinery. For automation panels and mobile equipment, it delivers IP protection and reliable, easy-to-service connectivity, supporting fast field maintenance and reduced lifecycle costs while integrating smoothly with crimp contact configurations and jam-nut receptacle mounting.
Product Information
Extended Description
UTS71823SZ Eaton: Plastic jam nut receptacle, without backshell, for 23 female contacts, IP68/69K, keying Z; UTS71823SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71823SZ
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 9 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS Flammability rating UL94 V0 REACH Fire & Smoke
Environmental resistance
Resistant against oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
10 A UL 7 A CSA 9 A IEC
Test voltage
500 V UL 63 V IEC 500 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
23
Number of cavity #16
23
Nut material
Aluminium
Salt spray
500 hour
IP68/69K protection in a plastic jam nut receptacle minimizes moisture ingress and contamination, offering a measurable reduction in field failures and warranty costs while enabling durable outdoor and harsh-environment installations. This translates to longer service intervals and lower maintenance time in rugged automation environments, making it ideal for machine builders and integrators seeking reliable I/O connectivity in challenging settings. The 23-position layout supports scalable I/O density, enabling efficient panel layouts and easier wiring schematics for complex automation systems and industrial robot applications. The 1/3 Bayonet coupling provides quick, slam-free mating with decisive retention, reducing installation time and rework on site while improving overall system integrity. Mating cycles rated at 250 ensure repeatable performance in high-cycle automation tasks, supporting long-term production uptime. Compatibility with crimp contact delivery and jam-nut receptacle mounting simplifies installation, maintenance, and replacement in retrofit projects. The operating temperature range of -40 °C to 105 °C enables operation across extreme climate zones without performance loss, benefiting outdoor equipment and underground mining automation. With polyamide insert material and a plastic shell, the connector delivers lightweight durability suitable for compact control panels and mobile machinery, while UV and chemical resistance support longevity in sun-exposed or industrial solvent environments. The combination of RoHS and fire resistance ratings (UL94 V0) ensures compliance with safety standards without compromising performance in demanding industrial settings. Overall, this connector delivers a robust balance of electrical performance, environmental protection, and ease of installation for engineers optimizing automation layouts.
Get a Quick Quote for a Eaton UTS71823SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71823SZ?
Enquire Now
FAQs
The UTS71823SZ is a jam-nut receptacle with a 1/3 Bayonet coupling and Z keying, designed for crimp contacts in a 23-position layout. It requires a jam-nut mounting approach and supports a stable, dust-tight, water-resistant seal (IP68). For installation, ensure proper crimp contacts are used and align the mating orientation (Z) to achieve reliable engagement and long service life in industrial environments.
This connector delivers IP68 protection, operates from -40 °C to 105 °C, and supports 10 A (UL) / 9 A (IEC) current ratings with 23 cavities. It also offers a 250 mating cycle life, fire resistance (UL94 V0), and UV resistance, making it well-suited for control panels, outdoor equipment, and machinery exposed to harsh conditions.
Yes. The IP68/69K rating, robust polyamide insert, and UV resistance enable reliable performance outdoors or in challenging environments. The material and sealing maintain integrity against mineral oil, acids, and oily atmospheres, while the temperature range ensures dependable operation from subzero to hot conditions typical of outdoor automation and mining equipment.
The UTS71823SZ complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3. These certifications validate safe electrical performance, connector reliability, and conformity to recognized safety standards, which is critical for panel builders, machinery manufacturers, and facilities seeking regulatory compliance and risk reduction in automation systems.
With 23 crimp contacts, IP68/69K protection, and a 250 mating cycle lifespan, maintenance is less frequent and replacement is straightforward, reducing downtime and service costs. The plug-and-play layout combined with quick mating reduces installation time, while the durable housing and seals extend service intervals, yielding measurable uptime improvements and lower total cost of ownership.
