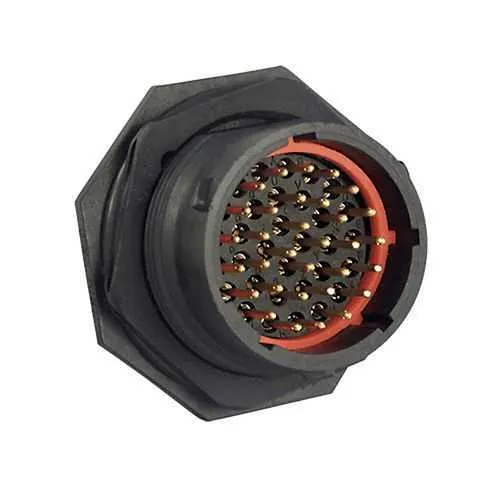

Eaton UTS71832P Receptacle - IP68/69K
Part Number: UTS71832P
Quick Summary
The Eaton Souriau UTS71832P is a waterproof plastic connector for 32-pin circuits in rugged industrial and outdoor environments. For engineers, moisture ingress, vibration, and backshell compatibility often complicate field installations. This IP68-rated 32‑contact receptacle supports IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, streamlining compliance in mixed regulatory environments. Its jam-nut design, crimp contacts, and 1/3 bayonet coupling simplify panel mounting and field maintenance. By combining dense signaling with rugged durability, it lowers lifecycle costs while enabling rapid integration into automation installations.
Product Information
Extended Description
UTS71832P Eaton: Plastic jam nut receptacle, without backshell, for 32 male contacts, IP68/69K; UTS71832P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71832P
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
23 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K sealing protects against water and dust, reducing unexpected downtime in wash-down and outdoor environments, while the 1/3 bayonet coupling enables fast, secure mating during installation. The 32-position layout supports high-density interconnects for sensors, controllers, and actuators, improving enclosure efficiency and reducing the need for multiple connectors. Polyamide insert and plastic shell deliver chemical resistance, UV stability, and a lightweight profile, extending service life in harsh environments and easing handling during maintenance. A mating cycle rating of 250 ensures long-term reliability in manufacturing and process automation applications, lowering replacement costs. Operating from -40 to 105 °C, this connector remains dependable across extreme temperatures encountered in outdoor machinery and mobile equipment. Compliance to IEC 61984, UL 1977, and CSA-C22.2 No.182.3 facilitates procurement and regulatory alignment for global projects. The jam-nut receptacle design supports secure panel mounting without backshells, while compatibility with optional backshell accessories enables enhanced EMI/RFI protection when required. Its compact dimensions (31.7 mm depth, 41.3 mm width/height) and minimal weight (23 g) support space-constrained installations in control cabinets and compact machinery. The corrosion-resistant aluminium nut and robust IP sealing contribute to a durable lifecycle in demanding environments, reducing maintenance intervals and total cost of ownership.
Get a Quick Quote for a Eaton UTS71832P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71832P?
Enquire Now
FAQs
The UTS71832P is a jam-nut receptacle designed for panel mounting without a backshell. It accepts standard Eaton backshells as needed for EMI/RFI protection. Use the 31.7 mm depth and 41.3 mm width to plan enclosure space, ensure mating alignment with the 1/3 Bayonet coupling, and tighten the jam nut for a robust seal against IP68/69K ingress.
This connector supports 4 A IEC and 5 A UL current ratings, with test current of 4 A IEC/4 A CSA and 5 A UL, and test voltage of 250 V CSA / 32 V IEC / 250 V UL. In safety-critical automation, these ratings enable reliable control and signaling within approved limits, while the IP68 sealing protects against moisture and dust in harsh environments.
Yes. With IP68 protection, extended operating range from -40 °C to 105 °C, UV resistance, and chemical resistance, the UTS71832P is well-suited for outdoor machinery, mobile equipment, and process automation where environmental exposure and wash-down are common.
The receptacle complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, aligning with global interconnect standards. This simplifies supplier qualification, ensures regulatory readiness for diverse markets, and supports durable, certification-backed performance in industrial settings.
With 250 mating cycles, a polyamide insert, aluminium nut, and IP68/69K sealing, the UTS71832P offers durable longevity in challenging environments. Reduced maintenance intervals, fewer field failures, and compatibility with standard accessories contribute to lower lifecycle costs for automation projects.
