Eaton UTS71832PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS71832PW
Quick Summary
Eaton Souriau UTS71832PW is a plastic waterproof IP68/69k receptacle connector designed for rugged industrial environments. Field reliability is a key challenge, with risk of ingress, moisture, and vibration causing unexpected downtime. This part complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, delivering IP68 protection and UV resistance for outdoor or harsh indoor use. With a 32-position jam-nut receptacle and a 1/3 bayonet coupling, it ensures secure mating under demanding conditions. The design supports efficient installation and maintenance, helping equipment manufacturers and integrators reduce service intervals while meeting stringent safety and environmental standards.
Product Information
Extended Description

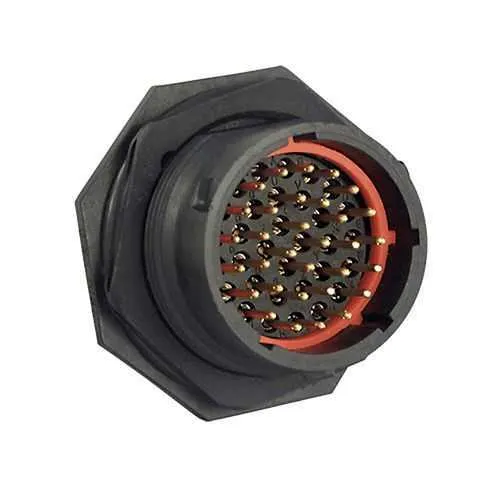

UTS71832PW Eaton: Plastic jam nut receptacle, without backshell, for 32 male contacts, IP68/69K, keying W; UTS71832PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71832PW
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
23 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil
Test current
5 A UL 4 A IEC 4 A CSA
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
500 hour
Feature: 32-position jam-nut receptacle with 1/3 bayonet coupling. Business Impact: Secure, fast mating with robust sealing, reducing ingress risk and field maintenance time. Application: Ideal for rugged automation panels and heavy equipment installations. Feature: Crimp contacts with a polyamide insert and aluminium nut. Business Impact: Simplifies field termination, improves durability, and resists corrosion. Application: Wiring assemblies for outdoor machinery and maritime equipment. Feature: IP68 protection, UV resistance, RoHS and REACH compliance. Business Impact: Ensures long service life in challenging environments while staying compliant with regulations. Application: Outdoor subassemblies, agriculture machinery, and industrial robots. Feature: Operating range -40 °C to 105 °C and 250 V/32 V voltage ratings. Business Impact: Broad temperature tolerance and versatile voltage support reduce part count and inventory. Application: Cold-weather locations, high-vibration plants, and mixed-voltage systems. Feature: 32 contacts, 250 mating cycles, and RoHS/REACH compliance. Business Impact: Predictable lifecycle and reliable performance over thousands of cycles with lower total cost of ownership. Application: Repeated mating in production lines and equipment that demand high durability.
Get a Quick Quote for a Eaton UTS71832PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71832PW?
Enquire Now
FAQs
Yes. The UTS71832PW is a jam-nut receptacle designed for secure mounting, and it uses a 1/3 bayonet coupling to simplify mating in tight or dirty conditions while maintaining strong environmental sealing.
It provides a 5 A rating per UL, 4 A per IEC and CSA, with voltage ratings of 250 V UL and CSA, and 32 V IEC, suitable for mixed-voltage automation equipment and sensor networks.
The product features IP68 sealing, UV resistance, RoHS and REACH compliance, UL94 V0 flammability rating, and is certified to UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting use in outdoor and harsh indoor environments.
The connector supports up to 250 mating cycles, with a robust aluminium nut, polyamide insert, and crimp contacts designed for repeated connect/disconnect cycles in demanding industrial settings.
Drawings are available in the Eaton resource library, for example C001UTS1A.pdf, which provides installation guidance and mating interface details for the UTS series.
