Eaton UTS71832PX Plastic Waterproof Connector IP68/69K
Part Number: UTS71832PX
Quick Summary
The Eaton UTS71832PX is a plastic waterproof IP68/69K connector for rugged industrial wiring. In harsh environments, water ingress and vibration can derail uptime and inflate maintenance costs. This Souriau UTS series design emphasizes IP68/69K protection, UL 1977, IEC 61984, and CSA-C22.2 No.182.3 compliance to minimize risk and rework. Lightweight and crimp-compatible, it integrates seamlessly with standard backshells and jam-nut receptacles, delivering reliable performance while reducing inventory complexity and total cost of ownership for industrial automation projects.
Product Information
Extended Description

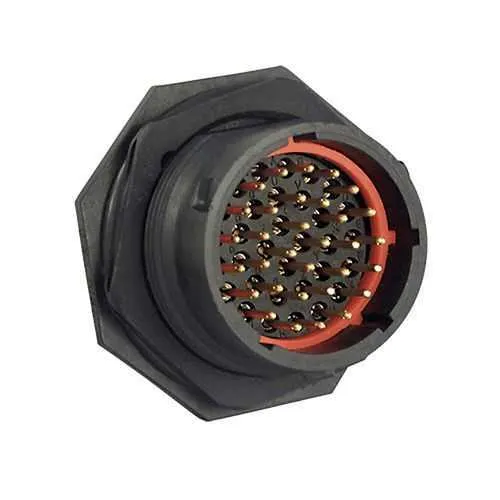

UTS71832PX Eaton: Plastic jam nut receptacle, without backshell, for 32 male contacts, IP68/69K, keying X; UTS71832PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71832PX
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
23 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against oil
Test current
4 A CSA 4 A IEC 5 A UL
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
500 hour
Feature: 32-position jam-nut receptacle with 1/3 bayonet coupling. Benefit: Enables compact, secure 32-channel wiring in a single connector, reducing harness length and assembly time while improving reliability in automated equipment. Application: Automation control panels and mobile machinery where space is at a premium and field servicing is common. Feature: IP68 protection and UV resistance. Benefit: Prevents ingress from water and UV exposure in outdoor or hazardous factory floors, extending component life and lowering maintenance cycles. Application: Outdoor conveyors, packaging lines, and off-site equipment needing long-term protection. Feature: Crimp contact design and 32 contacts. Benefit: Fast, repeatable assembly with high contact density, ensuring robust signal and power transmission. Application: Robotic arms and CNC interfaces requiring precise, high-pin-count connections. Feature: Wide operating temperature range (-40 °C to 105 °C) and vibration tolerance. Benefit: Maintains performance across temperature swings and mechanical shocks, reducing unexpected downtime. Application: Heavy-duty industrial environments and automotive-adjacent applications with thermal variability. Feature: 250 mating cycles and 5 A UL / 4 A IEC ratings. Benefit: Documented lifecycle and electrical safety margins that support long-term equipment replacement planning. Application: Accepts routine mating/demating in serviceable installations without frequent replacements. Feature: Material composition (Polyamide insert, Plastic shell) and Moss/chemical resistance (mineral oil, gasoline, oil). Benefit: Maintains integrity under exposure to oils and fuels common in hydraulic and fluid-handling systems. Application: Fluid-handling equipment, mobile machines, and maintenance fleets. The combination of these features supports compatibility with Souriau UTS accessories and standard crimp contacts, enabling streamlined procurement and reduced mis-matches in 32-position configurations.
