Eaton UTS71832PY Receptacle - Waterproof IP68/69K
Part Number: UTS71832PY
Quick Summary
Eaton UTS71832PY is a plastic waterproof IP68/69K receptacle connector for rugged industrial wiring. Moisture ingress, vibration, and field maintenance downtime challenge harsh environments and drive costly outages. Compliances include UL 1977, IEC 61984, and CSA-C22.2 No.182.3, reinforcing safety and interoperability in certified applications. With a 32-contact layout and a robust seal, this solution delivers reliable performance in outdoor equipment, construction machinery, and heavy-duty automation while simplifying installation and service life. Designed for wide operating temperatures and demanding conditions, it supports reduced maintenance costs and higher equipment uptime across mission-critical systems.
Product Information
Extended Description

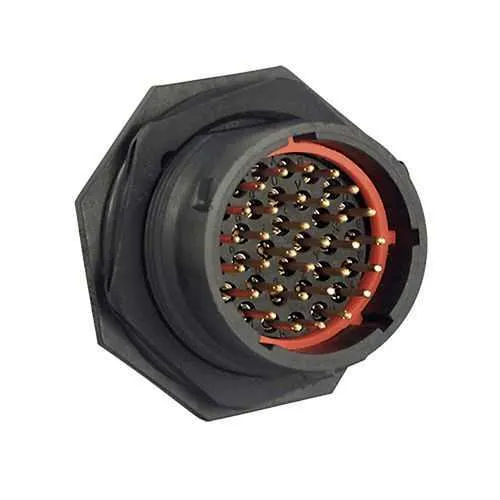

UTS71832PY Eaton: Plastic jam nut receptacle, without backshell, for 32 male contacts, IP68/69K, keying Y; UTS71832PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71832PY
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
23 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
500 hour
IP68/69K protection with a plastic jam-nut receptacle creates a sealed connection that resists water, dust, and immersion. The business impact is clear: fewer field failures, lower maintenance cycles, and longer service life for equipment exposed to washdowns or harsh environments, such as outdoor conveyors or mobile machinery. This design supports high-density signaling with 32 cavities, enabling complex sensor and actuator networks while maintaining compact form factors, which translates to fewer components and simpler harnessing in control cabinets. The 1/3 bayonet coupling provides quick, secure mating and reliable field assembly, reducing deployment time and labor costs in the plant. Operating temperature from -40 °C to 105 °C ensures reliable performance in extreme climates, minimizing downtime due to temperature swings in mining, agriculture, and construction sectors.
Get a Quick Quote for a Eaton UTS71832PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS71832PY?
Enquire Now
FAQs
The UTS71832PY is a jam-nut receptacle designed to be mounted with a threaded nut and a compatible backshell accessory ordered separately. It features a Y key orientation for correct mating and 32 cavities for crimp contacts. When installing, ensure proper torquing of the aluminium nut to maintain IP68/69K sealing, and verify that the mating harness uses compatible 32-position crimp contacts for reliable electrical performance.
Electrical ratings include a current rating of 5 A (UL) and 4 A (IEC), with a test current of 4 A IEC/CSA and 5 A UL. The contact system supports 32 cavities with a mating voltage of up to 250 V (UL/CSA) and 32 V (IEC). These ratings enable safe, sealed operation in standard control circuits and sensor networks while maintaining reliable performance in challenging environments.
Yes. The connector achieves IP68 protection and is designed for long-term exposure in harsh environments. It also offers UV resistance, oil and gasoline resistance, and a broad operating temperature range from -40 °C to 105 °C, making it appropriate for outdoor equipment, mining, and industrial automation subject to extreme weather, dust, and chemical exposure.
The UTS71832PY complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, ensuring safety, electrical performance, and cross-border interoperability. These certifications support regulatory approval for equipment integration, procurement decisions for compliant automation systems, and smoother customer acceptance in multi-country deployments.
With 250 mating cycles and a durable plastic jam-nut receptacle, the connector delivers long lifecycle performance in repeat-connect applications. The 32-contact layout reduces harness complexity, while the IP68/69K seal minimizes maintenance visits for moisture-related issues. Choosing compatible accessories and proper crimp contacts further reduces field failures and downtime, contributing to a lower total cost of ownership over the equipment lifecycle.
