Eaton UTS71832SX Receptacle - IP68/69K Waterproof
Part Number: UTS71832SX
Quick Summary
Eaton UTS71832SX Receptacle is a plastic waterproof IP68/69K connector designed for rugged industrial automation environments. Engineers often struggle with seals failing under vibration and exposure to oils and solvents, leading to costly downtime. The UTS71832SX meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring safety and cross-border compatibility, while its 32-position layout supports dense wiring in compact panels. This solution supports straightforward installation, reduces spare-part variety, and delivers dependable performance in harsh conditions, delivering business value through increased uptime and more predictable maintenance cycles.
Product Information
Extended Description

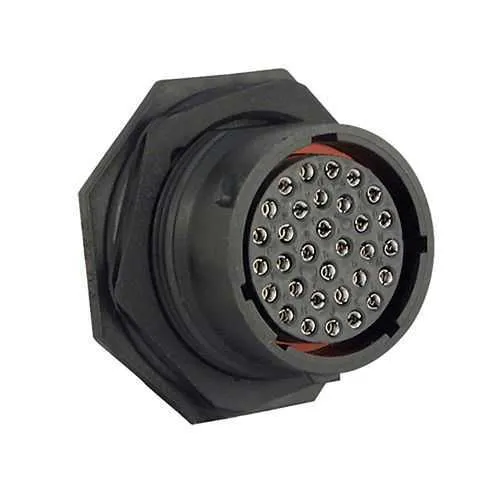

UTS71832SX Eaton: Plastic jam nut receptacle, without backshell, for 32 female contacts, IP68/69K, keying X; UTS71832SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS71832SX
Product Length/Depth
31.7 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.8 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Fire & Smoke REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath Resistant against basic bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline
Test current
4 A CSA 5 A UL 4 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
500 hour
Feature: The 32-position layout consolidates wiring into a single jam-nut receptacle, reducing panel density and harness complexity. Business Impact: Fewer interfaces mean shorter installation times, simpler harness routing, and lower spare-part stock for regional deployments. Application: Ideal for servo drives, multi-axis actuators, and sensor networks in automated lines. Feature: IP68/69K sealing plus environmental resistance protects the connector from water ingress, oil, UV exposure and chemical baths. Business Impact: This dramatically lowers preventive maintenance needs and extends mean time between failures in wash-down and outdoor installations. Application: Packaging lines, outdoor equipment, conveyors, and other rugged automation environments. Feature: 1/3 Bayonet coupling with jam-nut mounting simplifies mating and installation, with no backshell required. Business Impact: Reduces assembly steps and enables faster field replacement, cutting downtime. Application: Enclosures with limited space or where external protection is unnecessary. Feature: Operating temperature range -40 to 105 °C, with polyamide insert and aluminium nut. Business Impact: Maintains electrical integrity across wide temperatures and extends service life. Application: Industrial automation, machine tools, robotics. Feature: 32 contacts with 4 A IEC / 5 A UL and 250 V ratings. Business Impact: Meets common automation loads while ensuring regulatory compliance across regions. Application: Drive systems, sensors, actuators, and control panels.
