Eaton UTS7183G1PNPT Plastic Connector - IP68/69k
Part Number: UTS7183G1PNPT
Quick Summary
The UTS7183G1PNPT connector from Eaton is a waterproof plastic receptacle for four contacts in rugged environments. In harsh field conditions, maintaining reliable connections and protecting against water, dust, and oils can be challenging. It carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications with IP68 ingress protection, supporting durable outdoor and mobile use. Operating temperature ranges from -40 to 105 °C to cover cold starts and high heat. Designed for the Souriau UTS series, it enables reliable, scalable deployments, reducing maintenance and downtime while maintaining compliance.
Product Information
Extended Description

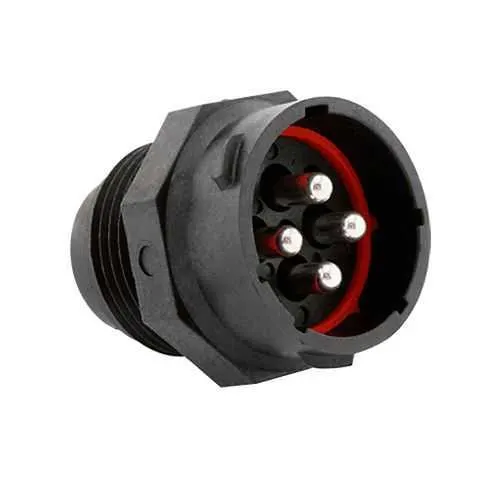

UTS7183G1PNPT Eaton: Plastic threaded receptacle, without backshell, for 4 male contacts, IP68/69K; UTS7183G1PNPT
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7183G1PNPT
Product Length/Depth
36.1 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
22.9 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
23 A UL 32 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability Layout with ground cavity
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH
Environmental resistance
Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against mineral oil Resistant against gasoline
Test current
32 A IEC 23 A UL 23 A CSA
Test voltage
600 V UL 300 V IEC 600 V CSA
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
4
Number of cavity #8 power
4
Salt spray
500 hour
Feature: Four-contact arrangement with 1/3 bayonet coupling. Benefit: Delivers secure, vibration-resistant mating and robust current handling in a compact footprint. Application: Ideal for 4-pin power and control connections in robotics, conveyors, and mobile machinery. Feature: IP68 sealing and environmental resistance. Benefit: Keeps ingress out even in immersion or heavy wash-down environments, reducing failures and service costs. Application: Outdoor equipment, packaging lines, and food-grade lines where moisture is a risk. Feature: Wide operating temperature (-40 °C to 105 °C). Benefit: Eliminates the need for multiple enclosures and simplifies design for extreme climates. Application: Outdoor, under-hood, or harsh industrial sites. Feature: High mating life (250 cycles) and polyamide shell. Benefit: Long-term reliability with predictable maintenance intervals and lower replacement costs. Application: High-duty automation and control assemblies. Feature: No backshell option; compact, light-weight design (44–46 mm footprint approximate). Benefit: Faster, easier installation with reduced tooling and maintenance; compatible with compact control panels. Application: Quick-mit assemblies in tight space environments. Feature: UL 1977, IEC 61984, CSA-C22.2 No.182.3 compliance. Benefit: Meets critical industry safety standards, supporting regulatory approvals and supplier qualification. Application: Medical, industrial automation, and energy equipment where formal approvals matter.
Get a Quick Quote for a Eaton UTS7183G1PNPT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7183G1PNPT?
Enquire Now
FAQs
No backshell option is available for this connector. It is designed as a threaded receptacle with no backshell, which simplifies installation in tight spaces. For environmental sealing and cable protection, plan external sealing strategies and appropriate enclosure integration in your system design.
The connector supports 23 A UL and 32 A IEC continuous current, with a test current of 32 A IEC and 23 A CSA. Voltage ratings include 600 V UL, 300 V IEC, and 600 V CSA. These ratings enable reliable power delivery in industrial automation and mobile equipment under varied regulatory requirements.
Yes. It features IP68 sealing (IP68) and is constructed with a polyamide insert and plastic shell, offering resistance to oil, UV exposure, and broad temperature swings. The design, plus UV and chemical resilience, supports outdoor, underwater, or wash-down applications commonly found in manufacturing and material handling.
The connector complies with UL 1977, IEC 61984, and CSA-C22.2 No. 182.3. These certifications validate safety, performance, and compatibility for industrial connectors, aiding regulatory compliance, supplier qualification, and risk reduction in sectors like automation, energy, and transportation.
With a mating life of up to 250 cycles and a rugged plastic/polyamide construction, the UTS7183G1PNPT offers predictable lifecycle performance in demanding environments. Maintenance implications include monitoring for wear on contact interfaces and ensuring proper mating to preserve IP rating; the design minimizes replacement cycles and field downtime.
