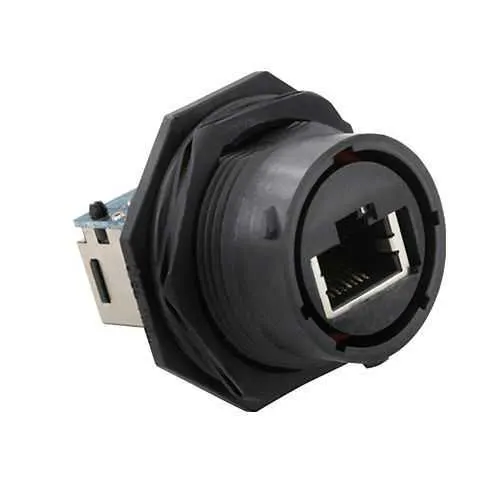

Eaton UTS718RJFA RJ45 Jam Nut Receptacle - IP68/IP69K
Part Number: UTS718RJFA
Quick Summary
Eaton UTS718RJFA is a plastic waterproof RJ45 jam-nut receptacle designed for hostile industrial environments. In rugged automation settings, ingress, corrosion, and vibration threaten reliable connectivity and drive maintenance costs. This receptacle meets IP68 protection with IP69K performance options, while RoHS, REACH and UL94 V0 compliance support regulatory needs. Its compact 48 mm length and 1-contact interface keep wiring organized and field-ready, delivering dependable connectivity. For designers and buyers, this UTS series receptacle reduces maintenance, extends service intervals, and lowers total cost of ownership. With 250 mating cycles and a robust aluminium nut, it tolerates harsh handling during assembly and servicing. This combination of ruggedness and ease of integration supports factory floor reliability and supply chain resilience.
Product Information
Extended Description
UTS718RJFA Eaton: Jam nut receptacle for RJ45, IP68/69K, A position; UTS718RJFA
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS718RJFA
Product Length/Depth
48 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
50 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH Fire & Smoke
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath Resistant against mineral oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Connector accessory option
No backshell possibility
Connector type
Receptacle
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
1
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/IP69K sealing and environmental resistance. Business Impact: Protects critical RJ45 connections from water ingress, dust, oils, and UV exposure, reducing unplanned downtime and extending service intervals across rugged machinery. Application: ideal for washdown areas in food processing, chemical plants, coastal offshore equipment, and mobile automation devices where reliable connectivity must endure harsh conditions. Feature: 1 contact jam-nut receptacle with compact 48 mm depth and 41.3 mm width/height. Business Impact: simplifies harness routing, lowers panel complexity, and supports lightweight, space-efficient assemblies. Application: panel-mounted data links and field-installable networks in tight enclosures where space is at a premium. Feature: Material build—polyamide insert, plastic shell, aluminium nut; Salt spray resistance 500 hours; -40 to 105 C range. Business Impact: delivers thermal and chemical resilience with predictable mating performance, improving uptime in diverse climates. Application: offshore platforms, mining sites, and process plants with moisture and chemical exposure. Feature: 1/3 Bayonet coupling. Business Impact: enables fast, tool-free mating and reliable retention, reducing assembly time and field service duration. Application: production lines and maintenance access points where quick reconfigurations matter. Feature: Operating temperature range and mating cycles. Business Impact: 250 mating cycles support long-term reliability and planned maintenance windows. Application: automation panels with frequent connector reuse and module swaps. Feature: Regulatory compliance—RoHS, REACH, UL94 V0. Business Impact: ensures regulatory conformance and safety across supply chains. Application: automotive-grade and general industrial equipment requiring formal material and safety standards. Feature: No backshell possibility. Business Impact: simplifies BOM decisions and procurement by encouraging direct-mount or compatible harness strategies. Application: streamlined design processes for compact installations where backshell options are not required.
Get a Quick Quote for a Eaton UTS718RJFA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS718RJFA?
Enquire Now
FAQs
This receptacle is part of the Souriau UTS series and is designed for RJ45 1-contact assemblies with jam-nut mounting; it has no backshell option, so plan for direct-mount or compatible harness solutions.
It provides IP68 protection (IP69K capability), RoHS and REACH compliance, and UL94 V0 flammability. Operating range is -40 to 105 C with 500 h salt spray resistance, suitable for harsh environments.
Yes. The combination of IP68/IP69K sealing, UV and chemical resistance, and IEC 60512-based vibration tolerance supports outdoor and heavy-duty automation equipment.
The receptacle is rated for 250 mating cycles, offering reliable performance over repeated connect/disconnect events.
It is a jam-nut receptacle with a 48 mm length, 41.3 mm width, 41.3 mm height, 50 g weight, and a 1/3 bayonet coupling. There is no backshell option, so plan mounting and cabling accordingly.
