Eaton UTS78D4P Receptacle - IP68/69K Waterproof
Part Number: UTS78D4P
Quick Summary
Eaton UTS78D4P is a plastic waterproof IP68/69K receptacle designed for rugged industrial automation connections. In wet, oily, or washdown environments, connectors frequently fail from moisture ingress and corrosion. It aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c, helping you meet regulatory requirements while improving reliability. This 4-pin PCB receptacle uses a compact jam-nut design without a backshell, enabling tight panel fit. With gold-plated contacts, 1/3 bayonet coupling, and a tough plastic shell, it delivers stable power and signal delivery for sensors, controllers, and field devices, reducing downtime and maintenance costs in harsh environments.
Product Information
Extended Description

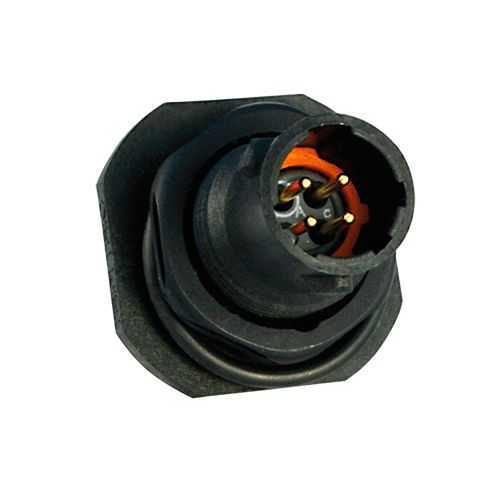

UTS78D4P Eaton: Plastic jam nut receptacle, without backshell, with 4 male PCB contacts, IP68/69K in unmated conditions; UTS78D4P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS78D4P
Product Length/Depth
25.3 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
7.2 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath Resistant against mineral oil
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #20
4
Nut material
Aluminium
Salt spray
500 hour
IP68/69K sealing provides robust ingress protection against water, dust, and washdown environments, increasing uptime for process automation lines and outdoor equipment. This translates to lower maintenance cycles and fewer field failures when used on sensors and actuators in challenging facilities. The 1/3 bayonet coupling enables fast mating and disassembly, significantly reducing installation and service time on robotics and packaging lines. Four gold-plated PCB contacts offer reliable electrical performance with excellent corrosion resistance, supporting precise sensor data transmission and steady control signals for PLCs and embedded systems. The jam nut receptacle design (no backshell) minimizes footprint in tight panels, streamlining cabinet layouts and reducing harness complexity, while demanding proper cable management and strain relief for EMI considerations. Operating from -40 °C to 105 °C with durable environmental resistance, including oil and UV tolerance, this connector supports outdoor and harsh-industrial deployments with long service life and predictable maintenance schedules. At 7 A current rating and up to 250 mating cycles, it balances performance and durability for continuously switching sensors, small actuators, and field devices, delivering reliable operation with minimal replacement costs.
