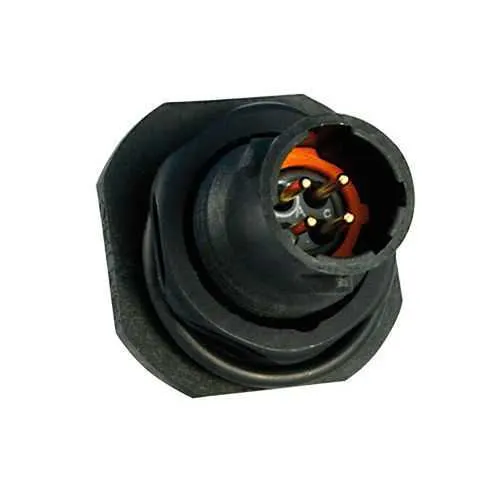

Eaton UTS78D4P32 Receptacle Connector - Waterproof IP68/69K
Part Number: UTS78D4P32
Quick Summary
Eaton Souriau UTS78D4P32 is a rugged PCB-mounted receptacle connector engineered for IP68/69K waterproof performance in harsh industrial settings. Operators frequently struggle with maintaining watertight seals and vibration resilience in outdoor equipment and dirty environments. This UTS series solution addresses those challenges with a jam nut receptacle, hold-down clips, and a compact 25.3 mm length that fits tight panels without backshells. It complies with key standards including IEC 61984, UL 1977, and CSA-C22.2 No.182.3, while RoHS exemption 6.c supports sustainable procurement. The combination of robust sealing, compact footprint, and 4 gold-plated PCB contacts translates to lower maintenance, faster assembly, and reliable electrical performance in automation and control applications.
Product Information
Extended Description
UTS78D4P32 Eaton: Plastic jam nut receptacle & hold down clips,without backshell, with 4 male PCB contacts, IP68/69K in unmated conditions; UTS78D4P32
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS78D4P32
Product Length/Depth
25.3 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
7.2 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against oil Resistant against acid bath Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V UL 250 V CSA 32 V IEC
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
PCB
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #20
4
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing in unmated conditions ensures long-term protection against dust and water ingress, reducing field failures and service calls in outdoor automation cabinets. This improves uptime and lowers total cost of ownership for machine builders and end users deploying rugged sensor and control networks in harsh environments. Feature → Installation efficiency → Application: Jam Nut Receptacle with hold-down clips and no backshell simplifies panel mounting, enabling quicker field wiring and streamlined assemblies for 4-contact PCB configurations in compact enclosures. Feature → Electrical reliability → Application: 7 A current rating, 250 V voltage capability, gold-plated PCB contacts, and 250 mating cycles deliver consistent signal integrity and power delivery in rugged automation modules, reducing recalibration and downtime. Feature → Environmental resilience → Application: Neoprene insert, plastic shell, and aluminium nut provide UV resistance, salt spray endurance, and temperature operation from -40 °C to 105 °C, supporting outdoor machinery, conveyors, and heavy equipment in extreme climates. Feature → Compliance assurance → Application: IEC 61984, UL 1977, CSA-C22.2 No.182.3 compatibility with RoHS exemption 6.c helps ensure regulatory alignment across global production lines, easing supplier audits and batch acceptance. Feature → Compact, reliable connectivity → Application: 4-position, 4-contact layout with a 24 mm square footprint suits compact control panels and distributed I/O nodes in factory automation and robotics.
