Eaton UTS78E4PM12 Receptacle - IP68/IP69K Waterproof
Part Number: UTS78E4PM12
Quick Summary
Eaton UTS78E4PM12 is a plastic waterproof receptacle for rugged industrial connections in harsh environments. Field deployments often suffer moisture ingress and corrosion, driving unplanned downtime and maintenance costs. It carries IEC 61984, UL 1977, CSA-C22.2 No. 182.3 certifications with ROHS exemption, reinforcing safety and environmental compliance for global programs. As a member of the Souriau UTS series, it delivers IP68/69K sealing and 4-pin solder cup connectivity, reducing spare parts and accelerating assembly in industrial automation. This combination translates into higher uptime and lower total cost of ownership for OEMs and service teams.
Product Information
Extended Description

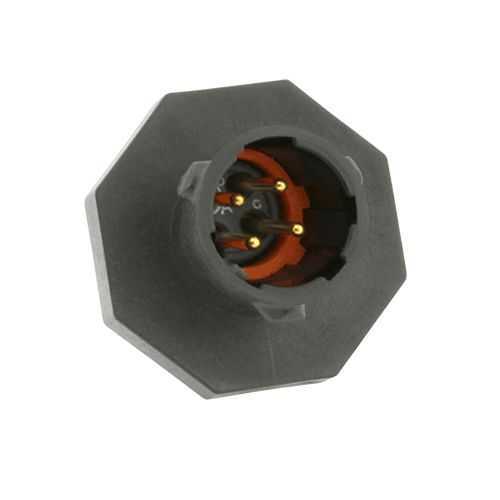

UTS78E4PM12 Eaton: Plastic threaded receptacle, without backshell, with 4 male solder contacts, IP68/69K in unmated conditions; UTS78E4PM12
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS78E4PM12
Product Length/Depth
21.3 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
7.2 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Threaded Receptacle
Number Of Contacts
4
Number of cavity #20
4
Salt spray
500 hour
Feature: IP68/69K sealing and four-cavity design provide robust ingress protection against water, dust, and chemical splash. Business Impact: Lower field failure rates and reduced maintenance, translating to higher equipment uptime. Application: Outdoor machinery, mobile equipment, and industrial control panels exposed to washdowns and dusty environments. Feature: 7 A current rating and 250 mating cycles ensure reliable, repeatable connections under standard power loads. Business Impact: Dependable sensor and actuator interfaces with long service life, reducing replacement costs. Application: PLC I/O blocks, control panels, and automation sensors requiring durable solder-cup contacts. Feature: 1/3 Bayonet coupling with a threaded receptacle design enables secure, vibration-resistant mating. Business Impact: Faster maintenance with fewer mis-mates and reduced tool requirements. Application: Equipment in high-vibration settings such as packaging lines and mining equipment. Feature: Operating temperature range from -40 °C to 105 °C handles extreme ambient conditions. Business Impact: Consistent performance across seasons and hot/cold plant zones, reducing climate-related failures. Application: Foundries, outdoor substations, and harsh-machine environments. Feature: No backshell option reduces weight and assembly cost while relying on compatible harnessing and housings. Business Impact: Lower total installed cost and simpler integration for compact automation layouts. Application: New equipment designs prioritizing streamlined harnessing in automated lines. Feature: Neoprene insert and plastic shell deliver chemical resistance and UV stability for long-term reliability. Business Impact: Extended service life in oil, fuel, and sunlight exposure, lowering maintenance intervals. Application: Robotic arms, outdoor control cabinets, and power distribution assemblies.
Get a Quick Quote for a Eaton UTS78E4PM12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS78E4PM12?
Enquire Now
FAQs
The UTS78E4PM12 is specified without a backshell option. For proper protection, mount the receptacle in a suitable sealed enclosure and use compatible harnesses or cable assemblies that incorporate pre-sealed terminations. Ensure the mating plug is fully engaged to maintain IP68/69K integrity and verify the neoprene insert seating for correct sealing.
The connector lists IEC 61984, UL 1977, CSA-C22.2 No. 182.3, and ROHS exemptions. These certifications support safe operation in diverse markets, provide electrical and environmental compliance, and help meet global procurement standards for rugged automation systems and industrial equipment.
Yes. It specifies 250 mating cycles and employs a 1/3 bayonet coupled threaded receptacle design, delivering secure mating under vibration. The assembly is well-suited for high-vibration settings like packaging lines or mobile industrial machinery, reducing the risk of intermittent connections.
The device operates from -40 °C to 105 °C and provides a current rating of 7 A. This combination supports reliable performance in cold starts, hot plants, and moderate-power automation tasks, helping prevent thermal-related failures in harsh environments.
Key benefits include IP68/69K sealing for robust ingress protection, four solder-cup contacts for compact yet capable interfaces, and a durable 250-cycle life. These attributes translate to higher uptime, easier procurement with a compatible Souriau UTS family, and lower total cost of ownership in rugged automation applications.
