Eaton UTS78E4S Receptacle - IP68/IP69K Waterproof
Part Number: UTS78E4S
Quick Summary
Eaton UTS78E4S is a waterproof jam-nut receptacle connector for rugged industrial wiring. This interface addresses moisture ingress and misalignment that plague outdoor and harsh-environment panels. It carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications with ROHS exemption 6.c, reinforcing reliability in regulated applications. Designed for four solder-cup contacts, with 1/3 bayonet coupling and a plastic shell, the UTS78E4S supports fast, secure mating while tolerating vibration and temperature extremes. Its versatile footprint fits compact control panels and mobile equipment, offering long service life with minimal maintenance. By coupling robust sealing and broad compatibility, it reduces field failures and spare-part costs while meeting industry standards for safety and performance.
Product Information
Extended Description

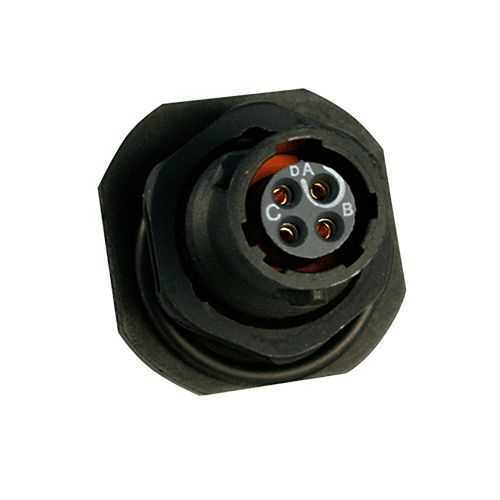

UTS78E4S Eaton: Plastic jam nut receptacle, without backshell, with 4 female solder contacts, IP68/69K in unmated conditions; UTS78E4S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS78E4S
Product Length/Depth
25.3 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
7.6 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #20
4
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K sealing protects against water ingress and dust in outdoor automation equipment. The jam-nut receptacle design simplifies panel mounting and sealing, reducing assembly steps and potential leaks. Four gold-plated solder cup contacts deliver reliable signal and power transfer, with a 7 A current rating and a 250 V rating that support control circuits and sensor interfaces in compact layouts. The 1/3 bayonet coupling enables quick, vibration-resistant mating, while maintaining durable mating cycles up to 250 for both mobile and stationary equipment. The operating temperature range of -40 to 105 °C ensures operation in extreme environments, with UV resistance and chemical compatibility that stand up to mineral oil, gasoline, and acid baths. Backshell is not delivered and must be ordered separately, allowing you to tailor accessories to your enclosure and routing needs. Compliance with IEC 61984, UL 1977, CSA-C22.2 No.182.3 and RoHS exemption 6.c provides regulatory confidence and market readiness, while the plastic shell and aluminium nut promote cost-efficient maintenance over the product life cycle.
