Eaton UTS7GJC104P Connector - IP68/69K Waterproof
Part Number: UTS7GJC104P
Quick Summary
UTS7GJC104P is a plastic waterproof IP68/69K connector for robust four-pin power and signal interconnections in harsh industrial environments. When installations run in dusty, oily, or vibration-heavy settings, maintenance costs and downtime rise; this receptacle helps prevent ingress and unreliable contacts. Certified for CSA-C22.2 No.182.3, IEC 61984, and UL 1977, it also aligns with UL94 V0 flame rating and RoHS/REACH requirements, giving design teams confidence. Its sealed backshell, 1/3 bayonet coupling, and four-position layout simplify field assembly, while providing long-term reliability that reduces spare parts and warranty exposure.
Product Information
Extended Description

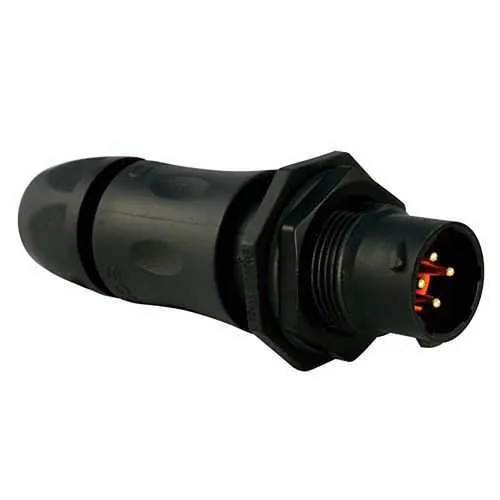

UTS7GJC104P Eaton: Plastic jam nut receptacle, with cable gland and grommet backshell, for 4 male contacts, IP68/69K; UTS7GJC104P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GJC104P
Product Length/Depth
72 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
21.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 13 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against oil Resistant against basic bath
Test current
10 A UL 13 A IEC 7 A CSA
Test voltage
500 V UL 500 V CSA 150 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K sealing and a rugged polyamide insert protect against water, dust, and chemical exposure. Business Impact: minimizes corrosion risk and downtime, extending equipment life in washdown zones, outdoor installations, and mobile automation. Application: conveyors, marine-adjacent machinery, and outdoor sensors. Feature: Four-position jam-nut receptacle with straight backshell and 1/3 bayonet coupling. Business Impact: fast, repeatable mating with secure retention, reducing installation time and rework. Application: panel-mounted connections on rugged machines. Feature: Cable gland and grommet backshell delivered with the connector. Business Impact: simplifies installation, maintains IP68 rating during cable entry, and lowers parts count. Application: rapid field repairs and OEM assemblies. Feature: Electrical and thermal performance specifications. Business Impact: supports critical automation loads with reliable current handling (10 A UL, 13 A IEC) and voltage (500 V). Application: sensor networks, actuators, and control circuits across -40 to 105 °C. Feature: Durable construction and compliances. Business Impact: salt spray resistance, UV stability, and RoHS/REACH compliance reduce maintenance costs and compliance risk. Application: heavy-use environments in oil/gas, automotive, and industrial automation.
Get a Quick Quote for a Eaton UTS7GJC104P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7GJC104P?
Enquire Now
FAQs
The UTS7GJC104P is a jam-nut receptacle designed for the Eaton Souriau UTS series. It mates with four-contact UTS connectors using a 1/3 bayonet coupling and delivers a straight backshell. It supports panel-mounted systems and is compatible with 1.5 to 8 mm cable diameters when outfitted with the included gland and grommet.
The connector provides a 10 A current rating (UL) and 13 A (IEC), with a test current of 10 A UL/IEC and a test voltage of 500 V. It operates from -40 °C to 105 °C, carries IP68 protection, and uses a polyamide insert in a plastic shell. It also complies with RoHS and REACH, and offers UV resistance and salt spray durability.
Yes. Its IP68/IP69K sealing, UV resistance, and backshell design with a sealing gland enable reliable performance in outdoor, washdown, and vibration-prone environments. The four-position layout supports robust field installations, while the materials (polyamide insert, plastic shell, aluminium nut) resist oil, fuel, and basic chemical exposure.
It complies with CSA-C22.2 No.182.3, IEC 61984, and UL 1977, with UL94 V0 flame rating and RoHS/REACH compliance. These certifications ensure safety, interoperability with global electrical standards, and regulatory peace of mind for OEMs deploying this connector in diverse markets.
With 250 mating cycles and a sealed backshell, the connector reduces maintenance frequency and field failure risk. The quick, secure 1/3 bayonet mating saves installation time, while IP68 protection minimizes downtime from ingress, contributing to lower service costs and longer equipment uptime in demanding automation environments.
