Eaton UTS7GJC104PW Receptacle - IP68 Waterproof
Part Number: UTS7GJC104PW
Quick Summary
The Eaton Souriau UTS7GJC104PW is a plastic waterproof IP68/69K receptacle connector designed for 4-pin automation applications in rugged environments. Engineers often grapple with moisture ingress, complicated seals, and slow field terminations that drive downtime. The product complies with IP68/IP69K sealing and recognized standards including UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting safe, regulatory-compliant operation across panels, robotics, and outdoor machinery. Its compact jam-nut design and 1/3 bayonet coupling deliver reliable mating in constrained spaces, reducing panel footprint and maintenance costs while expanding installation options. For buyers, this translates to faster commissioning, improved uptime, and predictable lifecycle costs in demanding automation environments.
Product Information
Extended Description

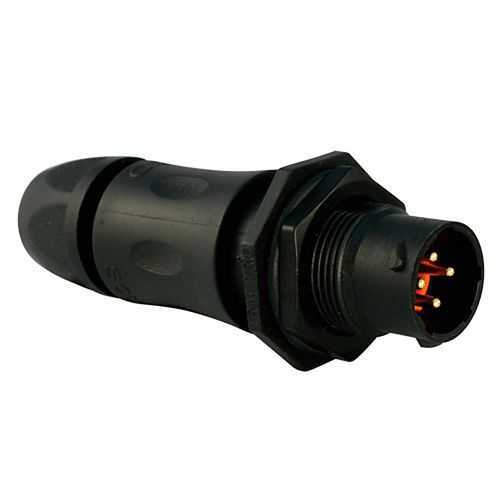

UTS7GJC104PW Eaton: Plastic jam nut receptacle, with cable gland and grommet backshell, for 4 male contacts, IP68/69K, keying W; UTS7GJC104PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GJC104PW
Product Length/Depth
72 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
21.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A UL 13 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
7 A CSA 10 A UL 13 A IEC
Test voltage
150 V IEC 500 V CSA 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K-rated protection ensures reliable operation in washdown-ready environments, shielding the four-pin receptacle from moisture, dust, and temporary submersion. Business impact: fewer ingress incidents reduce field service visits and warranty costs; Application: outdoor equipment, mobile machines, and food processing lines. Four crimp contacts and a robust backshell with sealing gland deliver space-efficient power and control connections. Impact: simplified harnessing, faster installation, and lower panel routing complexity; Application: compact control panels in automation and robotics. Jam nut receptacle with 1/3 bayonet coupling provides secure mating and quick disassembly even in tight spaces. Impact: faster maintenance and easier field servicing across harsh locations; Application: conveyor systems and mobile equipment. Operating temperature range -40 to 105 C and mating cycles of 250 support long-term reliability in rugged environments. Impact: sustained performance under temperature swings and repeated mating; Application: harsh factory floors and outdoor machinery. Cable diameter range 1.5–8 mm, shell size 10, and 72 mm length ensure compatibility with common sensor and motor cables. Impact: broad cabling flexibility and simplified replacements; Application: automation panels and equipment harnessing. The design aligns with a variety of standards and industries, reinforcing compliance while reducing total cost of ownership.
Get a Quick Quote for a Eaton UTS7GJC104PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7GJC104PW?
Enquire Now
FAQs
The UTS7GJC104PW is a Jam Nut Receptacle in the UTS series with a straight backshell and a 1/3 bayonet coupling. It is designed for 4-pin, crimp-contact configurations and aligns with Souriau UTS series mating interfaces, ensuring straightforward integration into existing harnesses and panel layouts without requiring special adapters.
The connector provides a current rating of 10 A (UL) and 13 A (IEC), with a test current of 7 A (CSA). Test voltage is 150 V (IEC) and 500 V (CSA/UL). Mating cycles are rated at 250. These specs support dependable operation in demanding automation environments with periodic mating cycles and standard control voltages.
Yes. The UTS7GJC104PW features IP68 sealing and IP69K readiness, along with UV resistance and RoHS/REACH compliance. It is well-suited for outdoor machinery, washdown areas, and automotive-like environments where moisture, dust, and chemical exposure are concerns.
It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting safe operation in electrical panels and equipment across North America and Europe. The IP68 rating and material selections also align with common industry requirements for rugged automation components.
The combination of a compact jam-nut receptacle, 1/3 bayonet coupling, and robust sealing reduces installation time and field service visits. With a 250 mating cycle life and wide operating temperature range, maintenance is predictable, downtime is minimized, and total cost of ownership improves due to fewer part replacements and quicker, reliable terminations.
