Eaton UTS7GJC1412P Connector - IP68/69K Waterproof
Part Number: UTS7GJC1412P
Quick Summary
Eaton UTS7GJC1412P is a plastic waterproof IP68/69K connector for rugged industrial applications. Engineers rely on a reliable seal and robust mating under vibration, dust, and exposure to oils. This design complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, providing safety and regulatory confidence across North America and beyond. By pairing this jam-nut receptacle with the Souriau UTS system, you gain faster installation, reduced field repairs, and longer service life. The 12-position layout with a backshell sealing gland supports easy harnessing, while the straight backshell orientation simplifies cable routing in confined spaces. This combination delivers predictable performance and cost-effective uptime for critical automation equipment.
Product Information
Extended Description

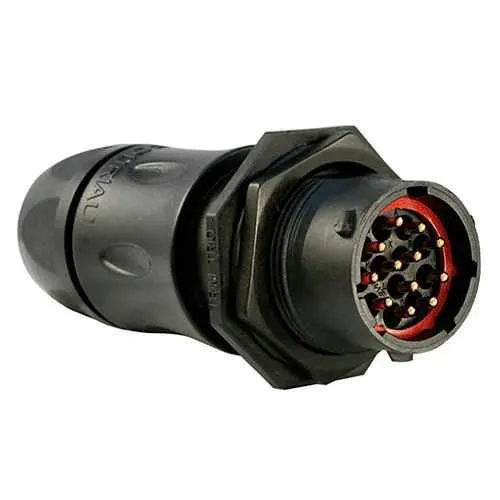

UTS7GJC1412P Eaton: Plastic jam nut receptacle, with cable gland and grommet backshell, for 12 male contacts, IP68/69K; UTS7GJC1412P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GJC1412P
Product Length/Depth
80 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
33.5 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
RoHS Flammability rating UL94 V0 REACH Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil
Test current
10 A UL 10 A IEC 7 A CSA
Test voltage
600 V CSA 600 V UL 63 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K waterproof protection ensures ingress resistance in wet, dusty, and washdown environments → Business Impact: minimizes downtime and extends service intervals by preventing moisture-related failures; Application: outdoor machinery and mobile equipment benefit from reliable connections in challenging conditions. Feature: 12-pin layout with crimp contacts supports multi-signal transmission in a compact footprint → Business Impact: reduces connector count and hardware complexity while enabling richer data and control signaling; Application: machine control panels and distributed IO setups. Feature: 1/3 bayonet coupling provides quick, secure mating with positive retention → Business Impact: speeds field assembly and maintenance with repeatable, vibration-resistant connections; Application: assembly lines and robotic systems. Feature: Sealing gland backshell and jam-nut receptacle design offer rugged mechanical integrity → Business Impact: improves longevity under thermal cycling and oil exposure, lowering replacement costs; Application: conveyor systems and hydraulic equipment. Feature: Aluminium nut, plastic shell, and polyamide insert deliver a balanced combination of weight, strength, and resistance → Business Impact: simplifies handling while maintaining durability in harsh environments; Application: portable or mounted control devices. Feature: Operating range −40 °C to 105 °C and UV resistance ensure reliable performance across climates → Business Impact: expands deployment options and reduces risk in outdoor and unmanned installations; Application: outdoor automation enclosures and remote sensors. Feature: 12 contacts, 10 A current rating, 600 V voltage rating with 250 mating cycles → Business Impact: supports robust power and signal integrity with predictable lifecycle costs; Application: industrial automation controllers and power feeds. Feature: Delivered with connector and compatibility with Souriau UTS family for streamlined spares and upgrades → Business Impact: lowers total cost of ownership through standardization; Application: multi-site deployments and OEM integration.
