Eaton UTS7GJC147P Receptacle Connector - Waterproof IP68/69K
Part Number: UTS7GJC147P
Quick Summary
The Eaton Souriau UTS7GJC147P plastic waterproof IP68/69K connector is a rugged 7-pin receptacle designed for harsh industrial environments. Customers juggle moisture, dust, and vibration that can cause downtime, misalignment, and costly rework in outdoor machinery. Key certifications include IP68/69K protection, IEC 61984, UL 1977, and CSA-C22.2 No.182.3, supporting global compliance. As a jam-nut receptacle with a straight backshell and seven crimp contacts, it speeds installation and improves reliability for the Souriau UTS series in automation and mobile equipment. This design supports quick mating, sealing, and maintenance, reducing field service time. By combining robust performance with global approvals, it helps OEMs meet project timelines and spare-part consistency.
Product Information
Extended Description

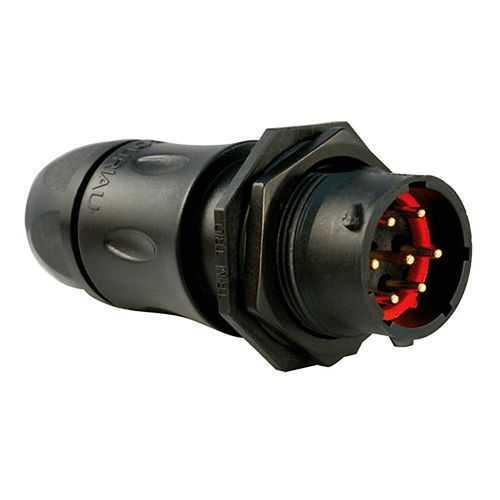

UTS7GJC147P Eaton: Plastic jam nut receptacle, with cable gland and grommet backshell, for 7 male contacts, IP68/69K; UTS7GJC147P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GJC147P
Product Length/Depth
80 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
34.9 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH Fire & Smoke RoHS
Environmental resistance
Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
10 A UL 7 A CSA 16 A IEC
Test voltage
500 V UL 500 V CSA 300 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Nut material
Aluminium
Salt spray
500 hour
IP68/69K waterproof rating with a polyamide insert guarantees a tight moisture seal, delivering superior reliability in challenging environments. This reduces field faults and unplanned downtime, which translates into lower maintenance costs for outdoor automation and mobile equipment. Seven-contact arrangement with a 16 A current rating (IEC) and 500 V supports both power and signal in a single connector, cutting harness complexity and weight. This is advantageous in automation controllers, packaging lines, and industrial robots. The 1/3 bayonet coupling enables quick, tool-free mating even in tight spaces, while the sealing gland backshell ensures reliable ingress protection. With up to 250 mating cycles, maintenance remains predictable and downtime is minimized, ideal for high-vibration equipment in manufacturing lines. The jam-nut receptacle, straight backshell, and lightweight polyamide insert offer a compact footprint, simplifying installations on control panels and mobile machinery. Compliance to IEC 61984, UL 1977, and CSA-C22.2 No.182.3 plus broad environmental resistance (UV, oil, and chemical) supports long service life and consistent spare-part compatibility across Souriau UTS family applications.
Get a Quick Quote for a Eaton UTS7GJC147P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS7GJC147P?
Enquire Now
FAQs
When installing the UTS7GJC147P, use the jam-nut receptacle with the straight backshell and sealing gland to establish a water-tight seal. Ensure cable diameter falls within 5 to 14 mm, use the 1/3 bayonet coupling for secure mating, and follow the 80 mm length to position the connector properly on panels or enclosures. Proper crimp contacts must be used for reliable electrical connections.
Key specs include IP68 / 69K protection, 7 contacts with a current rating of 16 A (IEC) / 10 A (UL), voltage rating up to 500 V, mating cycles rated at 250, and operating temperature from -40 to 105 C. The backshell is a sealing gland type, and the layout is 7 with a straight backshell angle, ensuring compatibility with 7-pin harnesses.
This 7-pin waterproof receptacle is ideal for outdoor automation panels, mobile equipment, conveyors, mining machinery, and washdown environments. Its IP68/69K sealing, bayonet coupling, and 7-contact layout enable robust power and signal transmission in harsh industrial settings while simplifying harness design and maintenance.
The connector meets IP68/69K sealing standards and complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3. These certifications support global installation across OEMs in construction, automation, and heavy equipment sectors, ensuring safety, compatibility, and regulatory alignment.
By delivering reliable sealing, a durable straight-backshell design, and up to 250 mating cycles, the UTS7GJC147P reduces field maintenance and downtime. Its compatibility with Souriau UTS series parts and standard crimp contacts simplifies spares management, stocking, and panel installation, yielding lower lifecycle costs for industrial automation projects.
