Eaton UTS7GN1412P Jam Nut Receptacle Connector - IP68/69K
Part Number: UTS7GN1412P
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69K connector enables rugged 12‑position connections for outdoor and mobile equipment. Engineers often face ingress, dust, and field maintenance in harsh environments, and this design helps prevent costly downtime. UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications validate safety and regulatory readiness across global markets. The jam-nut receptacle with grommet backshell simplifies installation, while the aluminum nut and polyamide insert deliver durable, vibration‑resistant performance. This combination supports reliable wiring in equipment such as hydraulic testers, outdoor motors, and agricultural machinery, delivering consistent wiring integrity and long service life, reducing replacement costs and maintenance cycles.
Product Information
Extended Description

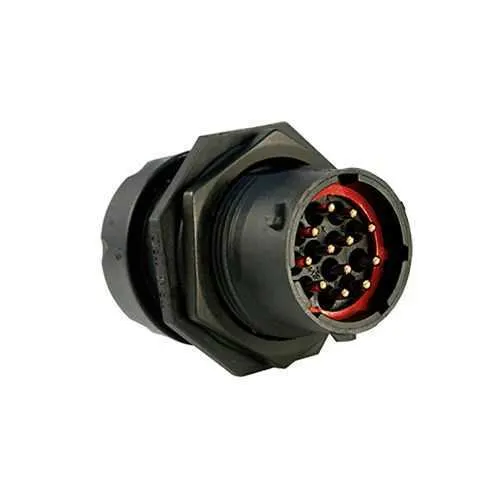

UTS7GN1412P Eaton: Plastic jam nut receptacle, with nut and grommet backshell, for 12 male contacts, IP68/69K; UTS7GN1412P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GN1412P
Product Length/Depth
43 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
16.4 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH RoHS
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
10 A IEC 7 A CSA 10 A UL
Test voltage
600 V UL 63 V IEC 600 V CSA
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
IP68/IP69K rated plastic waterproof connector provides reliable protection against water, dust and harsh washdown environments, improving uptime and reducing ingress-related failures in outdoor deployments. → Business impact: lowers maintenance costs and extends equipment life; Applications: outdoor industrial conveyors, agricultural machinery, and mobile equipment. The 12-contact layout enables complex sensor/actuator wiring without sacraficing compact form, streamlining harness design and reducing installation time. → Business impact: faster assembly, lower labor costs; Applications: automation panels and mobile machinery. The 1/3 bayonet coupling delivers quick mating with strong vibration resistance, enabling rapid field servicing and robust in‑field reliability. → Business impact: minimizes downtime during maintenance; Applications: robotics, packaging lines, and construction equipment. The jam-nut receptacle with nut and grommet backshell provides a sealed, strain-relief optimized interface. → Business impact: improved cable retention and sealing; Applications: high-vibration environments and long cable runs. Operating temperature from -40 °C to 105 °C ensures dependable operation across extreme climates. → Business impact: broader geographic and seasonal applicability; Applications: engine compartments, weather-exposed machinery, and solar/industrial installations. Mating cycles rated at 250 ensure durable reuse across service life. → Business impact: lowers lifecycle replacement costs; Applications: maintenance-heavy automation systems. Compliance to UL 1977, IEC 61984, and CSA-C22.2 No.182.3 supports global regulatory readiness. → Business impact: simplifies procurement and certification processes; Applications: global deployments and OEM integrations.
